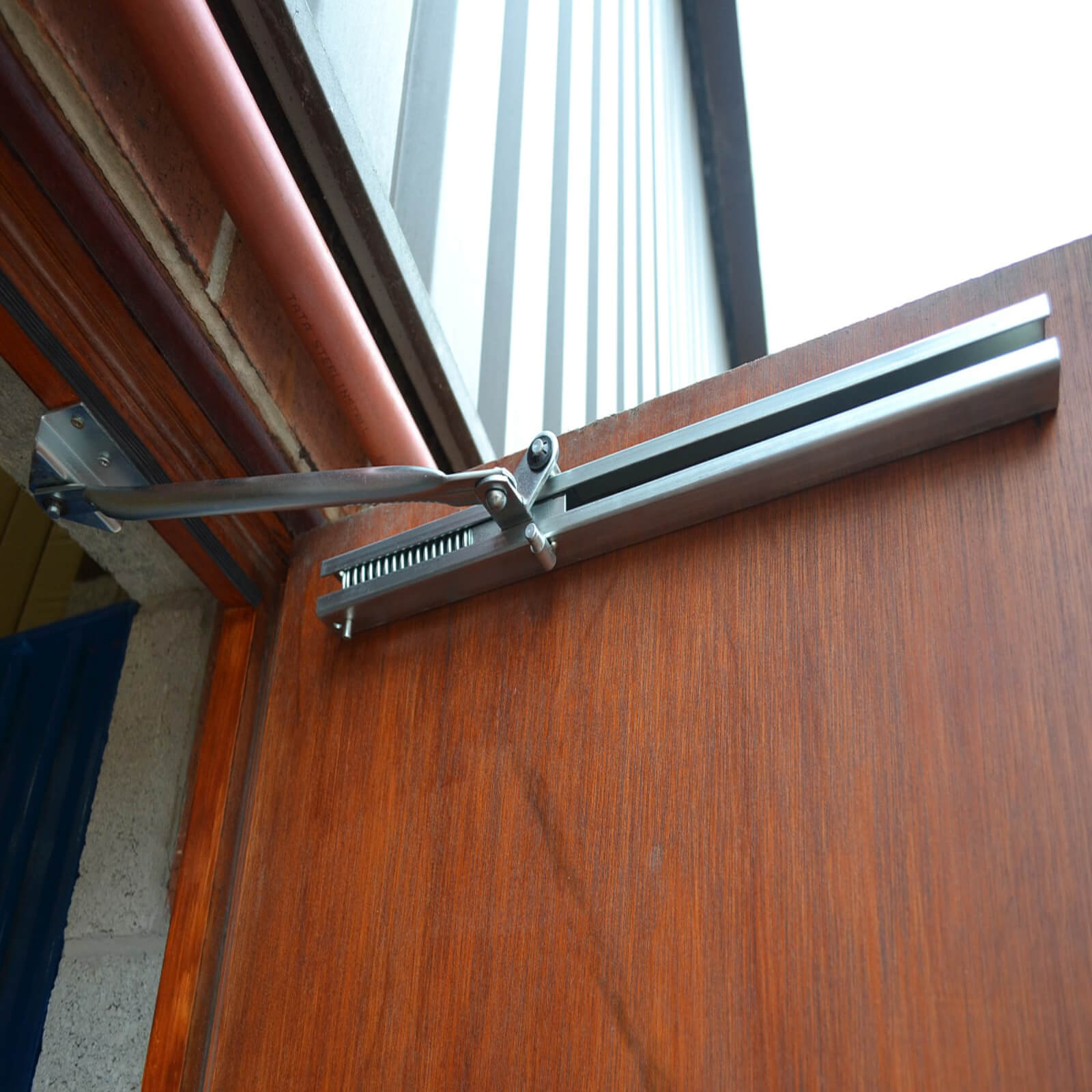

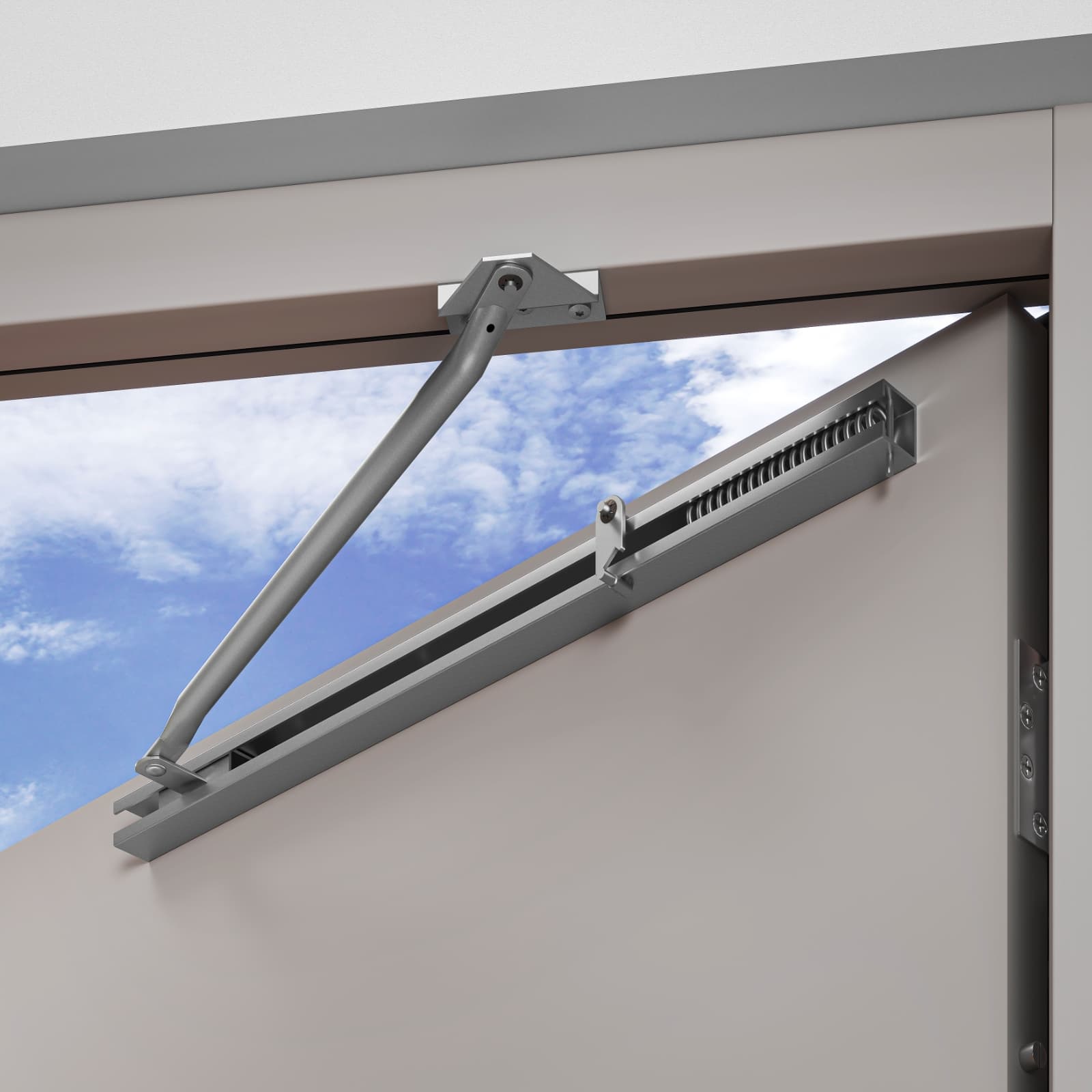

Spring Stay Accessory Part fitted

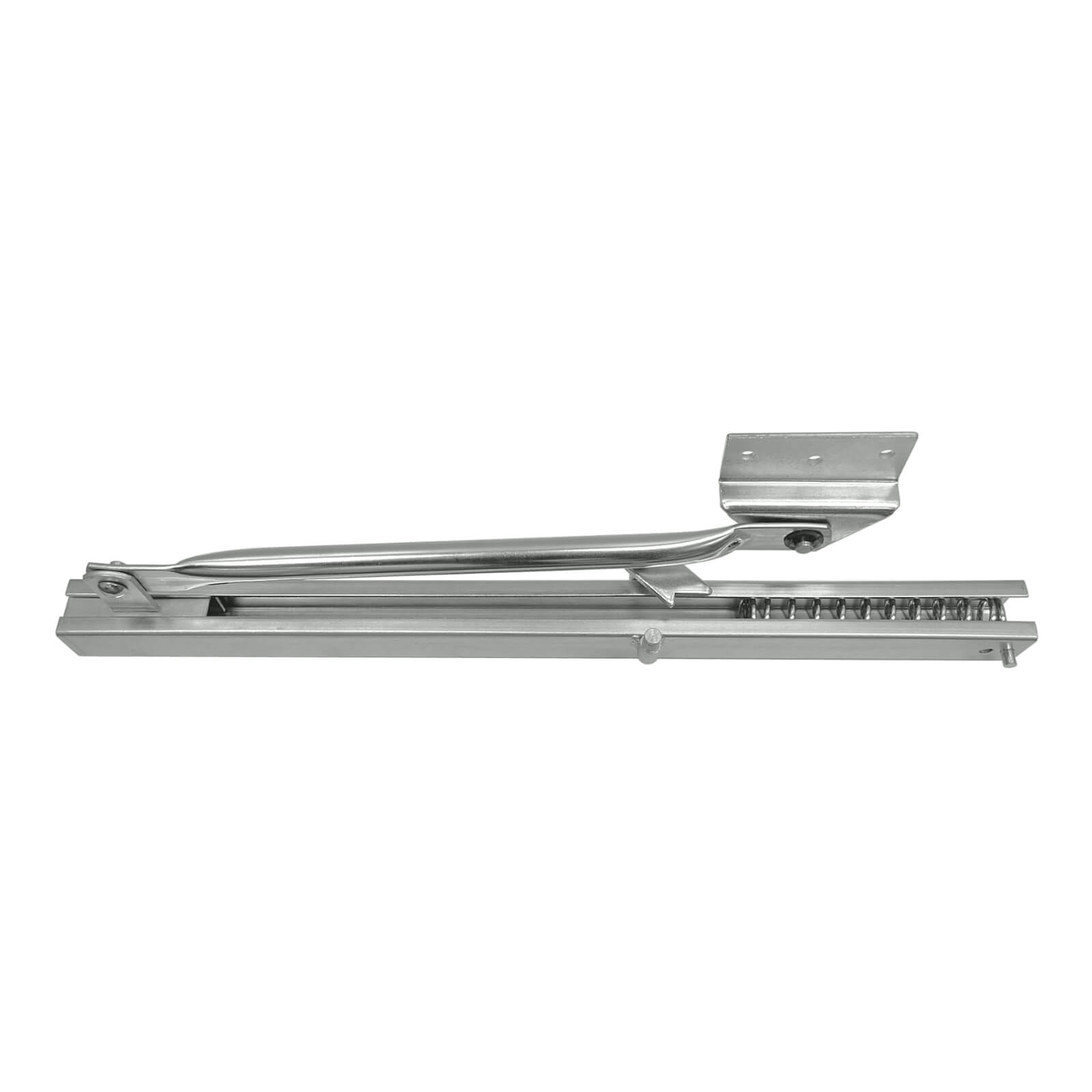

Spring Stay

From £54.00 inc. VAT (£45.00 + VAT)

  • Suit both left hand & right hand doors
  • Holds and opens door to 90 degrees
  • Suits door widths 600mm – 1100mm
  • Steel galvanised finish
  • Maximum door weight 125kg
SKU: STAY-SPRUNG Category:

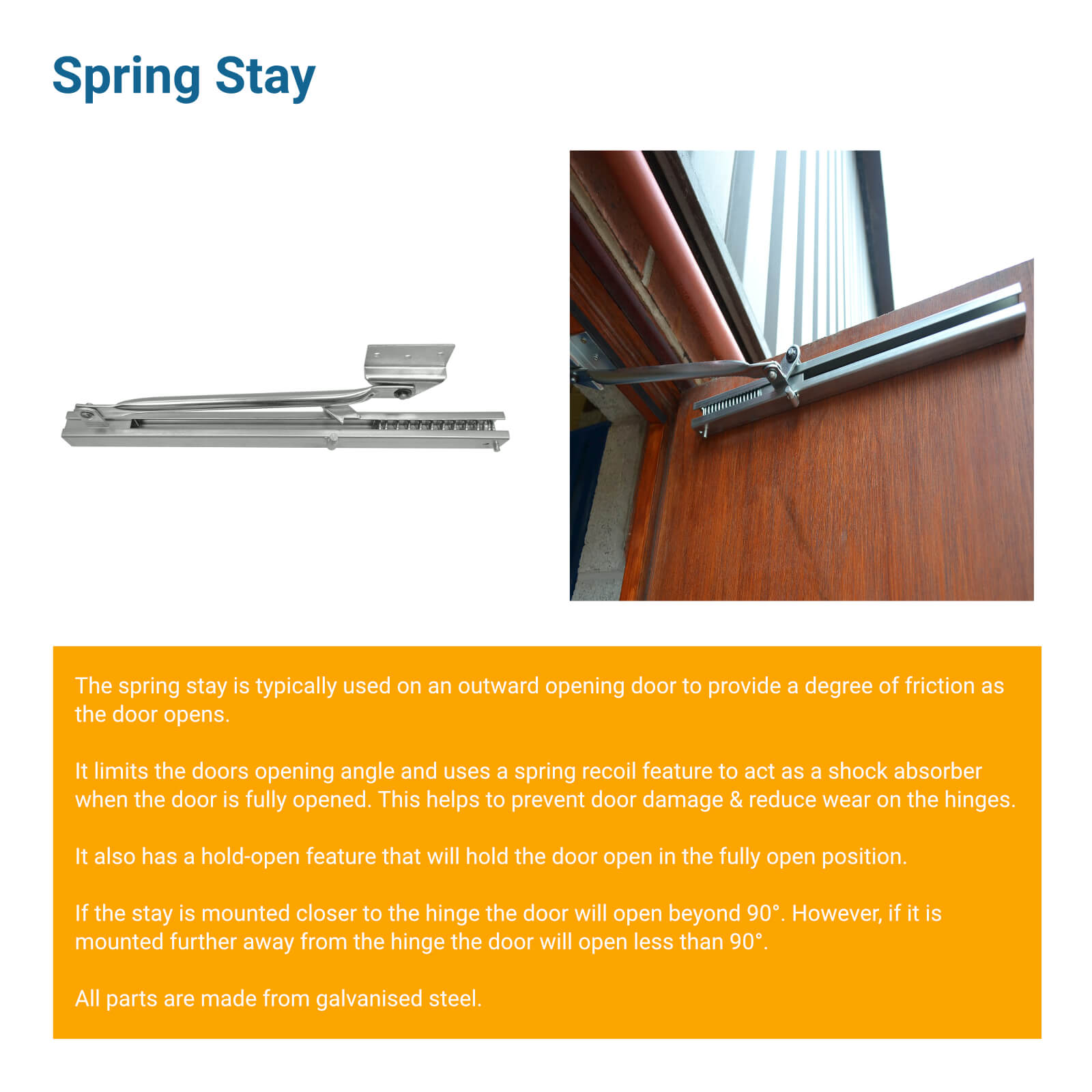

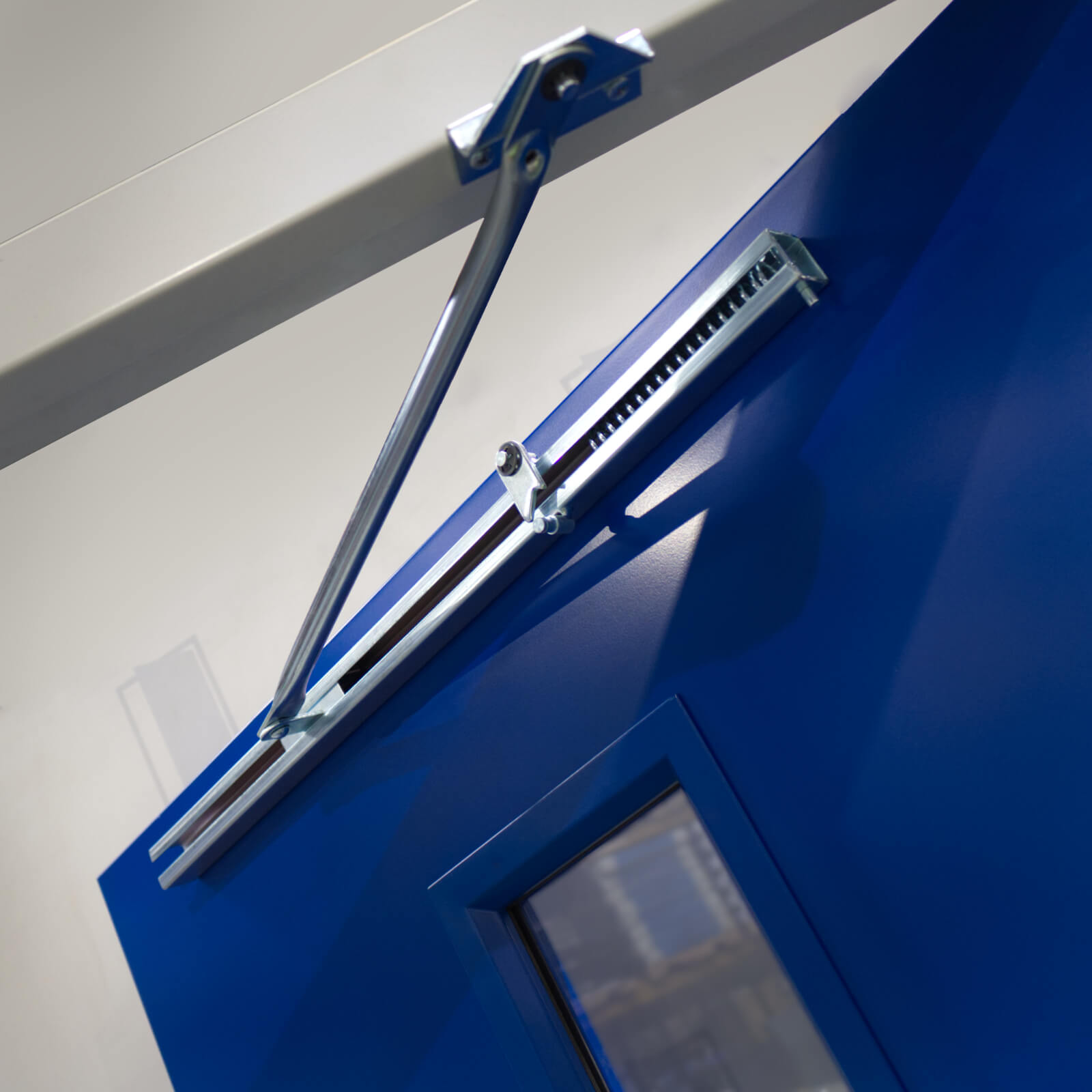

The spring stay is typically used on an outward opening door to provide a degree of friction as the door opens.

It limits the doors opening angle and uses a spring recoil feature to act as a shock absorber when the door is fully opened. This helps to prevent door damage & reduce wear on the hinges.

It also has a hold-open feature that will hold the door open in the fully open position.

If the stay is mounted closer to the hinge the door will open beyond 90°. However, if it is mounted further away from the hinge the door will open less than 90°.

All parts are made from galvanised steel. Fixing pack and spring included.

Weight 2.5 kg
Materials

Galvanised Steel

Dimensions

465mm – 625mm Length

Opening

approximately 90 degrees

Door Width

600-800mm, 800-1100mm

Testing

Grade 4 (240 hours neutral salt spray exposure) in accordance with BS EN 1670:2007 Building Hardware – Corrosion Resistance.

Max door weight

125kg
