Glazed steel door in white

Glazed Steel Door (Security)

From £509.98 inc. VAT (£424.98 + VAT)

Our glazed steel doors are manufactured using our most popular security steel door, which features our trademark 19-point locking system from stock. It is available in sizes from 695mm – 1195mm wide.

Choose from small glazed windows to a fully glazed panel, to allow as much light through, without compromising security. An optional Secured By Design certified PAS24 security upgrade is also available.

Also available as Glazed Steel Double Doors.

  • Total

SKU: HDP-GLA-DOOR-1 Category:

*Please note: our glazed steel door range feature our steel vision frames and single glazing. For composite vision frames and double glazing, please make direct contact for this special request*

Optional Secured By Design Certified Upgrade

An optional PAS24 certified upgrade is also available. Being PAS24 rated means you can be assured this door has been taken through a rigorous testing process in order to gain certification, and is backed by the police security initiative, Secured By Design (SBD).

Stay Secure, Let in light

Our glazed steel doors are designed to let in as much light as possible through the vision panel without compromising on security. All our glazed personnel doors are fitted with our trademark 19-point locking system.

Colours for your Steel Door

As with all Latham’s steel doors, this steel entry door comes powder coated in Latham’s Stock White however we also offer a powder coating service so you can match your door and frame to your surroundings.

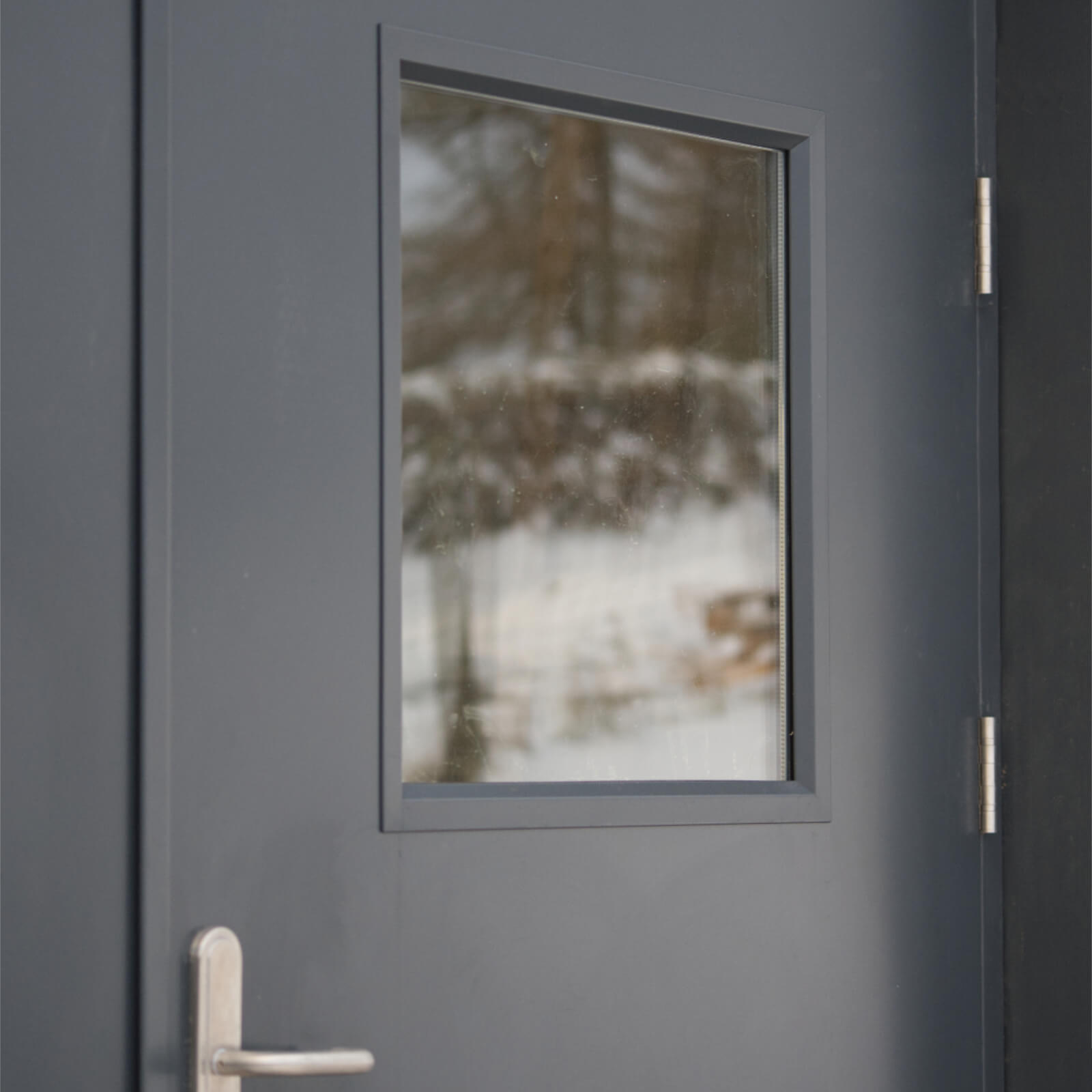

Glazed Panels to fit your Steel Door

Glazed panels for your steel security door are available starting from size 225mm x 225mm up to a fully glazed panel for maximum vision capability.

On-site Manufacturing

Our stock doors are available for next-day delivery or collection. Adding a glazed panel will take up to 4 working days and is manufactured in our warehouse at our Tividale site.

Door Type

Personnel Door

Available Sizes (mm)

695×2020, 795×2020, 845×2020, 895×2020, 995×2020, 1095×2020, 1195×2020

Finish

White powder coat from stock, choice of colours available

Design

Plain door with flush panel

Door Frame Material

1.8mm Galvanised Steel

Door Frame Depth

90mm

Door Leaf Material

Double skinned 1.0mm galvanised steel

Door Leaf Depth

50mm

Door Leaf Core

Mineral wool insulation

Internal Strengthening

2 x horizontal & 1 x vertical reinforced bar

U Value

2.20

Acoustic Value

35dB

Hinges

4 Stainless steel ball bearing hinges

Handles

Hooply handles (5586)

Locks or Door Furniture

Latham's trademark 19 point locking system

Cylinder

UAP Tradelock Euro Cylinder, security upgrade available

Seal

Nylon self adhesive V-seal

Dog Bolts

4 Dog bolts

Threshold

DDA (Disability Discrimination Act) compliant threshold

Jemmy Bar Lip

At door jam, hinge side & top

Construction

Fully welded construction

Security Type

Medium

CE Certification

Yes

Security Certification

PAS24 Certified

Fire Rating Certification

None

Stock Product

Yes

Made to Measure Product

No

External or Internal Use

Suitable for external and internal use

Example Door Purposes

Office door, shop front door, glazed door

Videos


FAQs

What glass is installed in the panels?

For Security doors, we use 11.5mm anti-bandit security glass.
For High Security (Ultra) doors, we use a double glazed unit, compromising of 11.5mm anti-bandit security glass and a 6.4mm laminate.

What can the glazed steel doors be used for?

Our customers frequently use our glazed doors for residential and commercial applications, for example secure office interior doors.

How do I choose the hinge side and opening? (Handing)

Hinge side and opening is determined viewed from outside.
Example 1: LH hinge open out: hinges are on the LH side, handle is on the right and you pull the door towards you.
Example 2: RH hinge open in: hinges are on the RH side, handle is on the left and you push the door away from you.
See our handy illustration here

What is the lead time?

Stock Door (white, with glazing panels installed) – 4 working days
Re-Powder Coated Stock Door (not white) – 10 working days
Lead times stated above are plus delivery.

How many keys come with the louvred doors?

Personnel doors come with 3 usable keys
Additional keys are available – we have a key cutting machine on-site
See our cylinder options video here

What are the door sizes? What is the clear opening?

The sizes listed are external frame sizes.
We offer side panels and over panels if you need to add to the width or height of the door. We also offer a cut down service to reduce the height of the door
To calculate the clear opening (when the door is open), subtract 110mm from the width dimension. E.G. 895mm-110mm=760mm clear opening
See the video on how to measure here

What is Security Trim?

The security trim kit fits around the perimeter of the door frame, preventing any packing from being seen externally and making the door as a whole more secure.
It hides un-level or large gaps, hides the position of fixings eliminating the risk of tampering from intruders and crucially protects the fixings from attack.
See the security trim video here

To see all FAQs, click here

Downloads

Operation & Maintenance Manual

Download operation & maintenance manual
