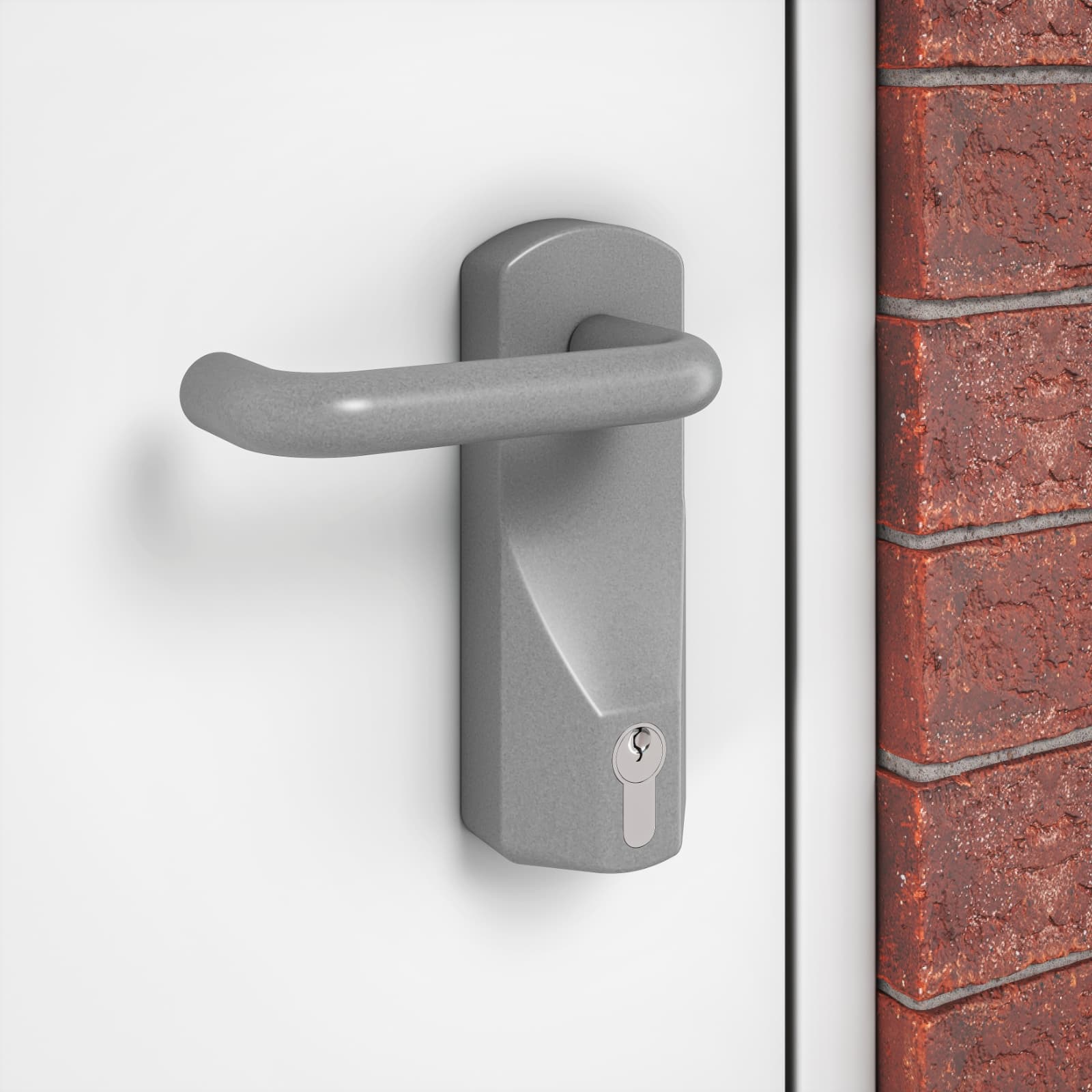

Exidor 322 Lever Operated Outside Access Device fitted

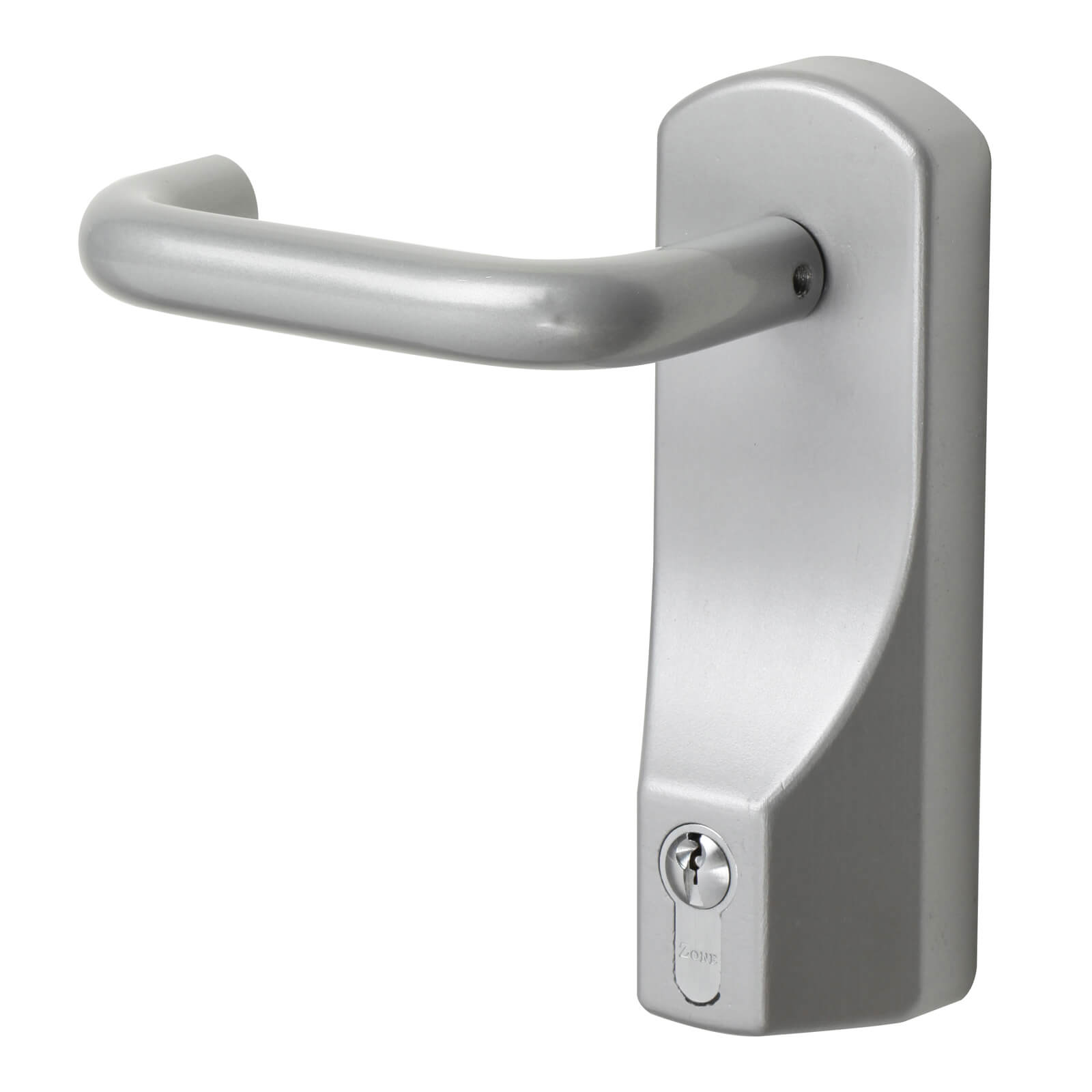

Exidor 322 Lever Operated Outside Access Device

From £45.00 inc. VAT (£45.00 + VAT)

The Exidor 322 is a lever operated outside access device that is supplied with 3 keys and as an advantage a master keyed 45mm Euro profile cylinder can be used. Suitable for use with the Exidor 294a296 and 285a panic bars, the Exidor 322 offers access from the outside of the door.

  • Non-handed
  • Meets the dimensional requirements of BS8300 and approved Document “M” (DDA)
  • Lever is supplied with special shear screw designed to break under excessive force
  • Surface mounted on the outside of the door using three concealed machine screws
  • Same fixing points as the 302 OAD – easy retro fit
  • Supplied as standard for doors up to 55mm thick



Performance

When locked, the lever is fixed in the horizontal position and the shear screw is designed to break under excessive force to prevent unauthorised entry. When unlocked, the lever, spindle and mechanism engage allowing the shoots, latch or Pullman latches to be withdrawn from the outside. The lever remains engaged until the mechanism is re-locked.

Weight 4.5 kg
