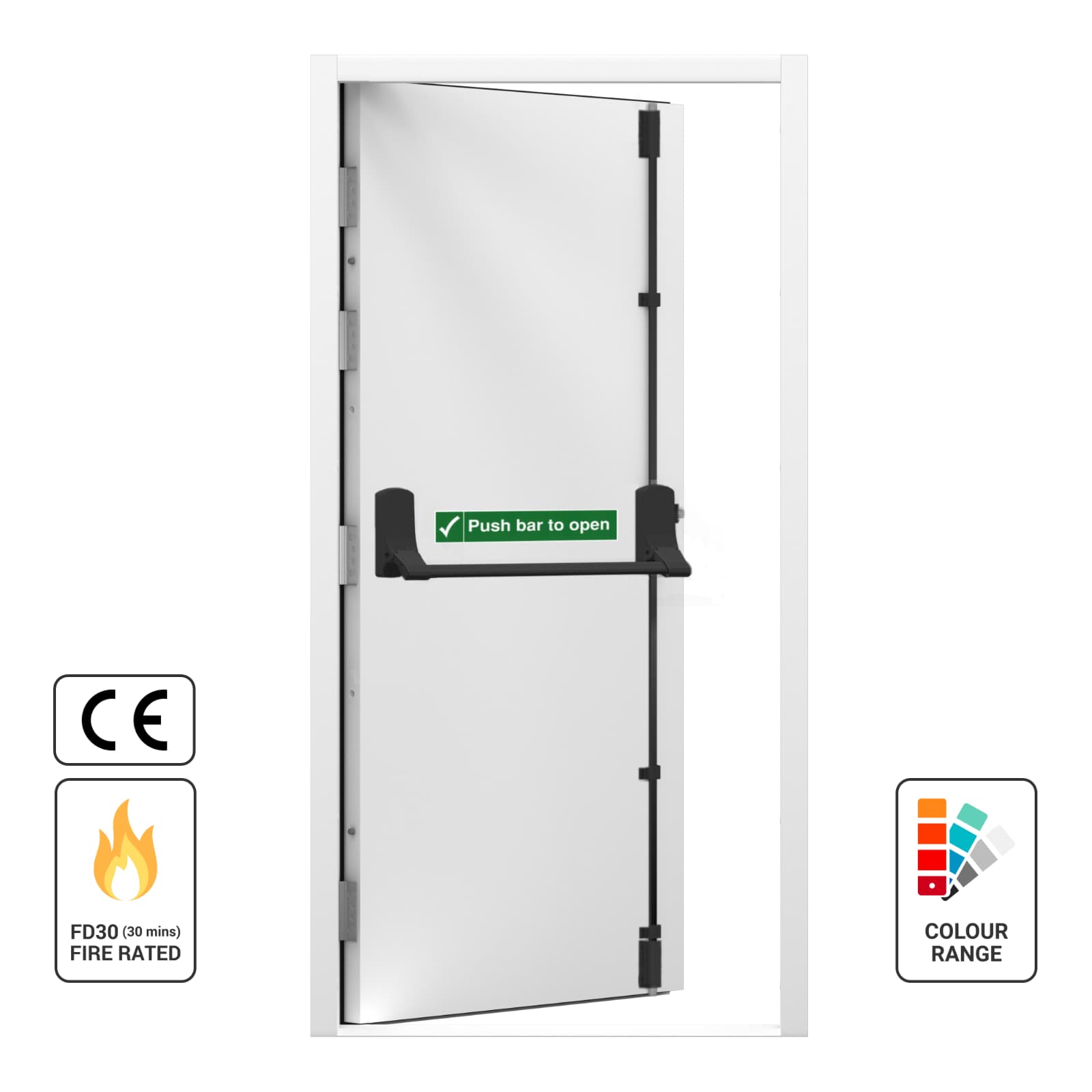

Latham's FD30 fire rated fire exit door

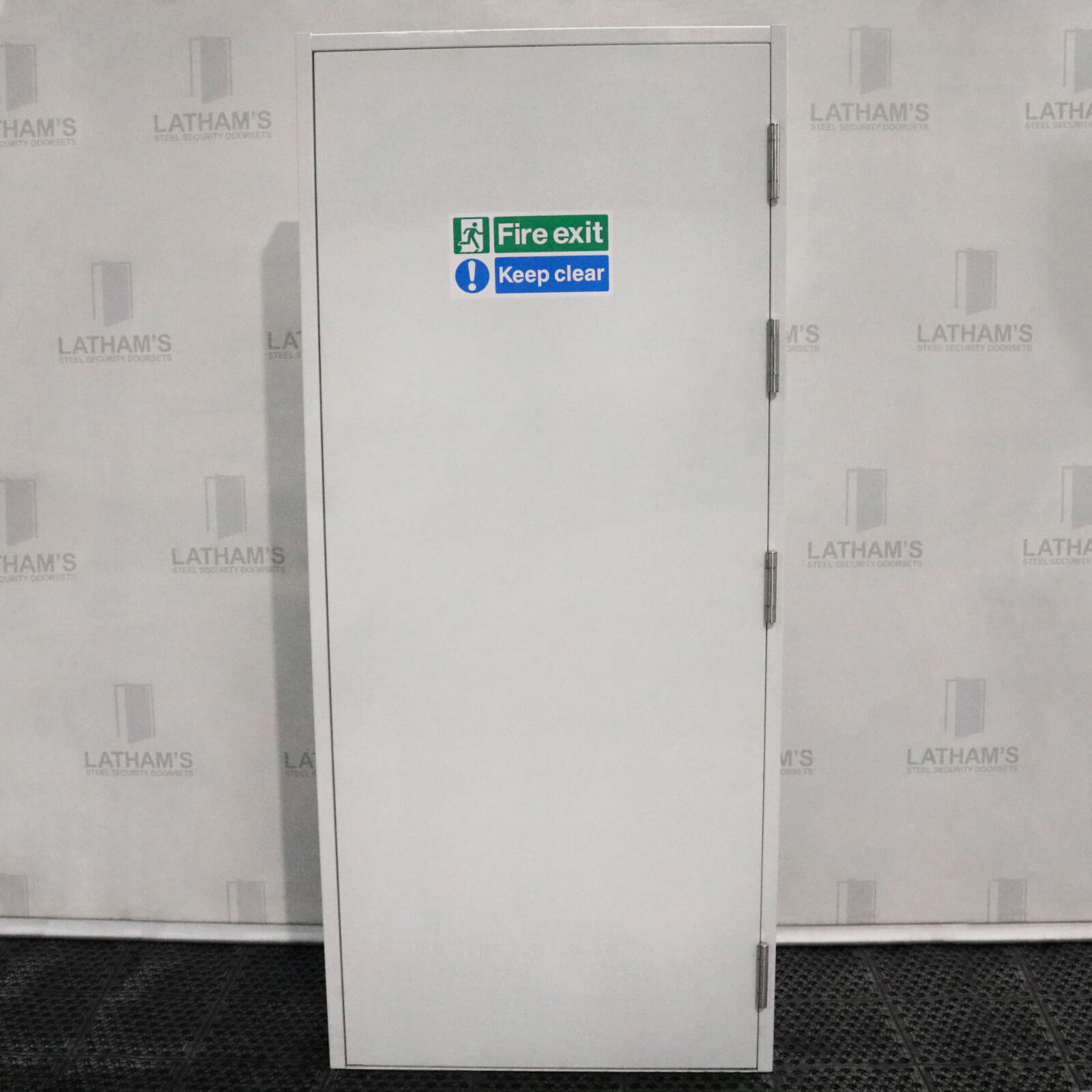

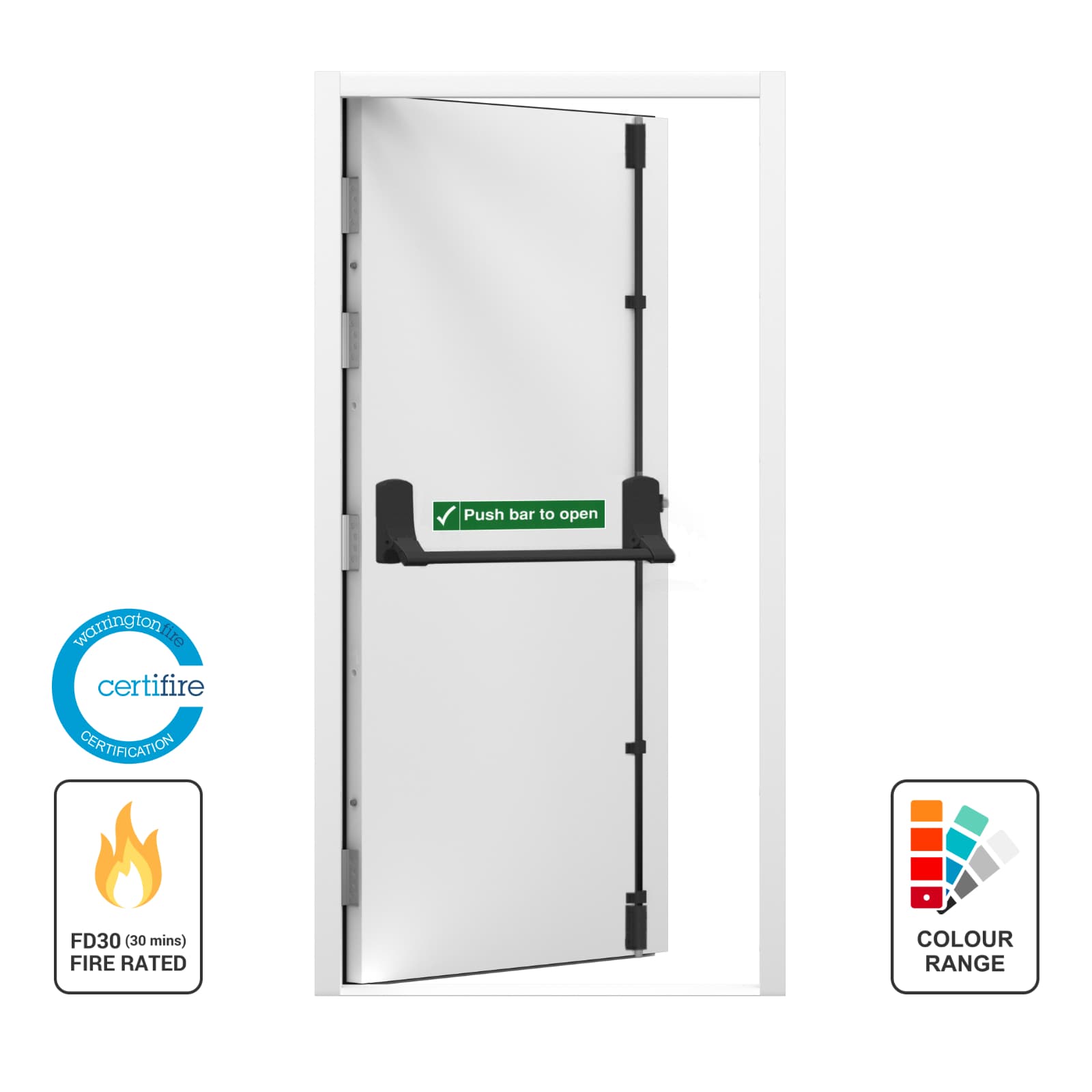

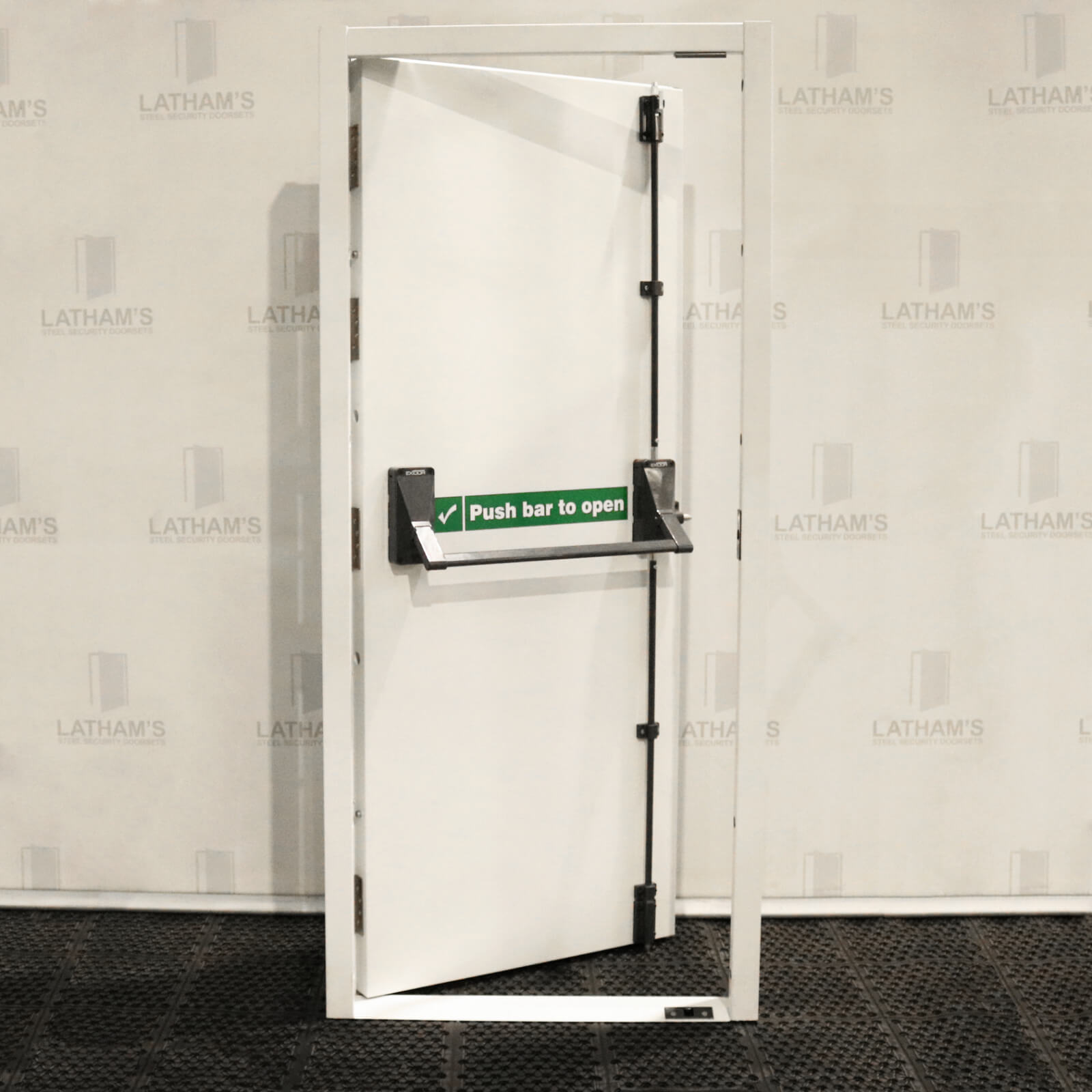

Fire Rated Fire Exit Door (FD30)

From £983.99 inc. VAT (£819.99 + VAT)

Our most secure and safe fire exit door, rated to FD30 certification this fire exit door ensures optimum security whilst maintaining fire safety.

Fitted with an industry leading EXIDOR 700 series ‘703B’ panic bar, this fire rated fire exit is manufactured using thicker gauge steel, internal reinforcement bars and heavy duty stainless steel hinges.

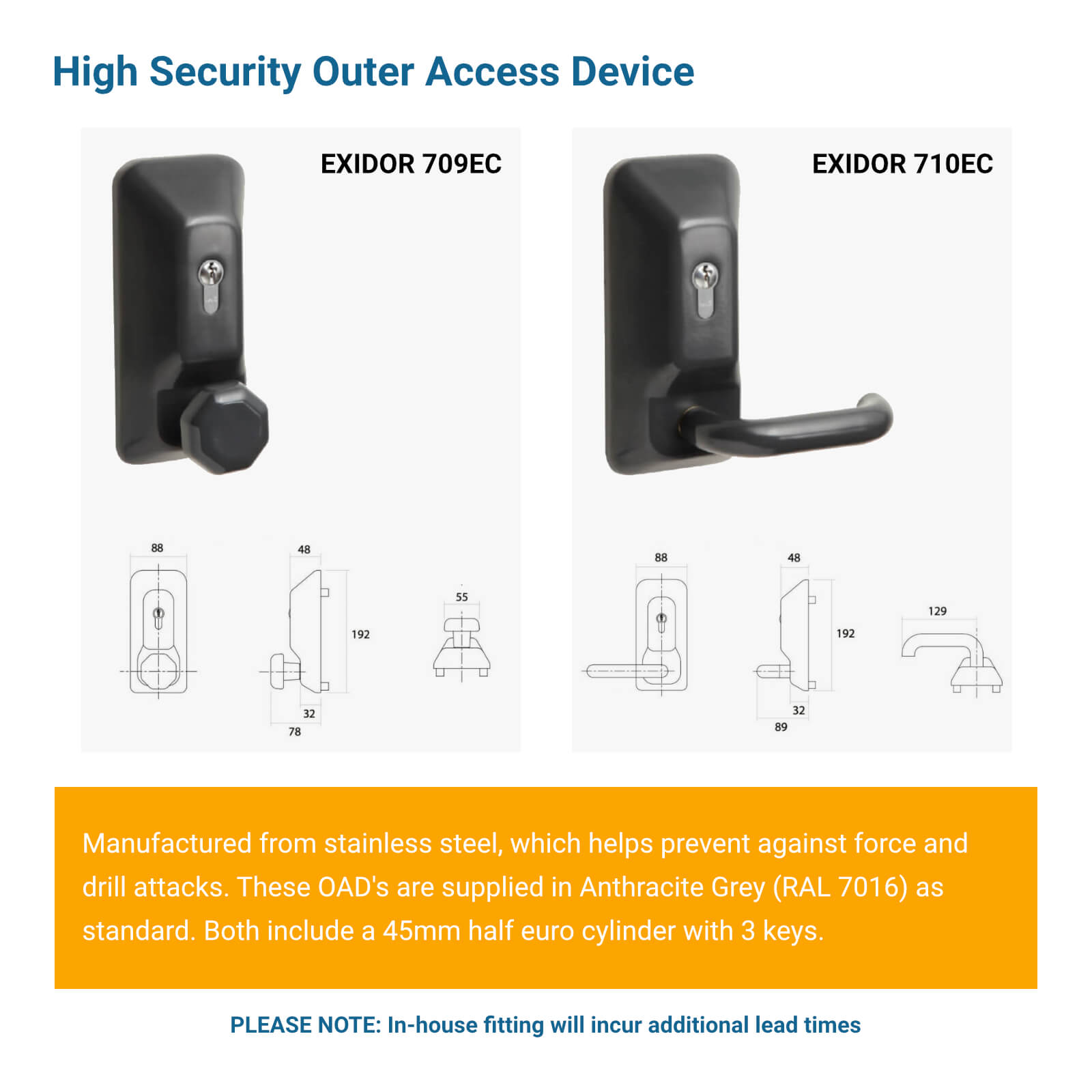

We also have a range of high security outer access device options available including a knob and a lever handle if external access is required too.

  • Total

PLEASE NOTE: These doors are manufactured to order for certification.

Lead Times
Standard door: 5 working days + delivery
Powder coated door: 10 working days + delivery
Fast track options: Contact us for availability

SKU: FD30-FIRE-EXIT Category:

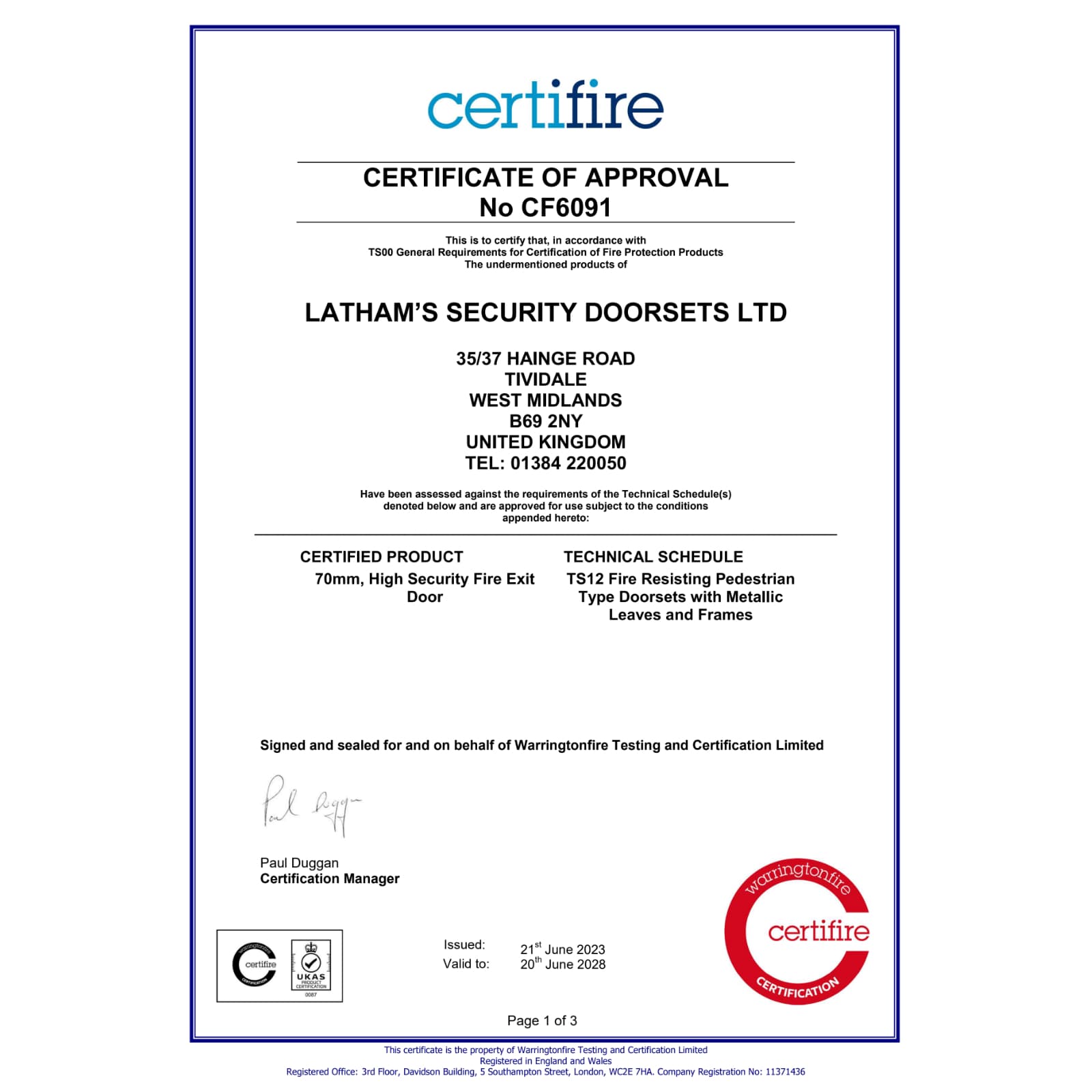

Click here to view our Warrington certifications

Our fire rated fire exit doors offer increased fire protection. They have been tested to FD30 standards which means they are suitable for applications requiring:

FD30 – 30 minutes of fire rating

Fire rated doors help by slowing the spread of fire, and are a legal requirement for commercial properties. Suitable for commercial and industrial settings such as offices, retail units, hospitality & leisure premises, school, nurseries, and doctors surgeries’

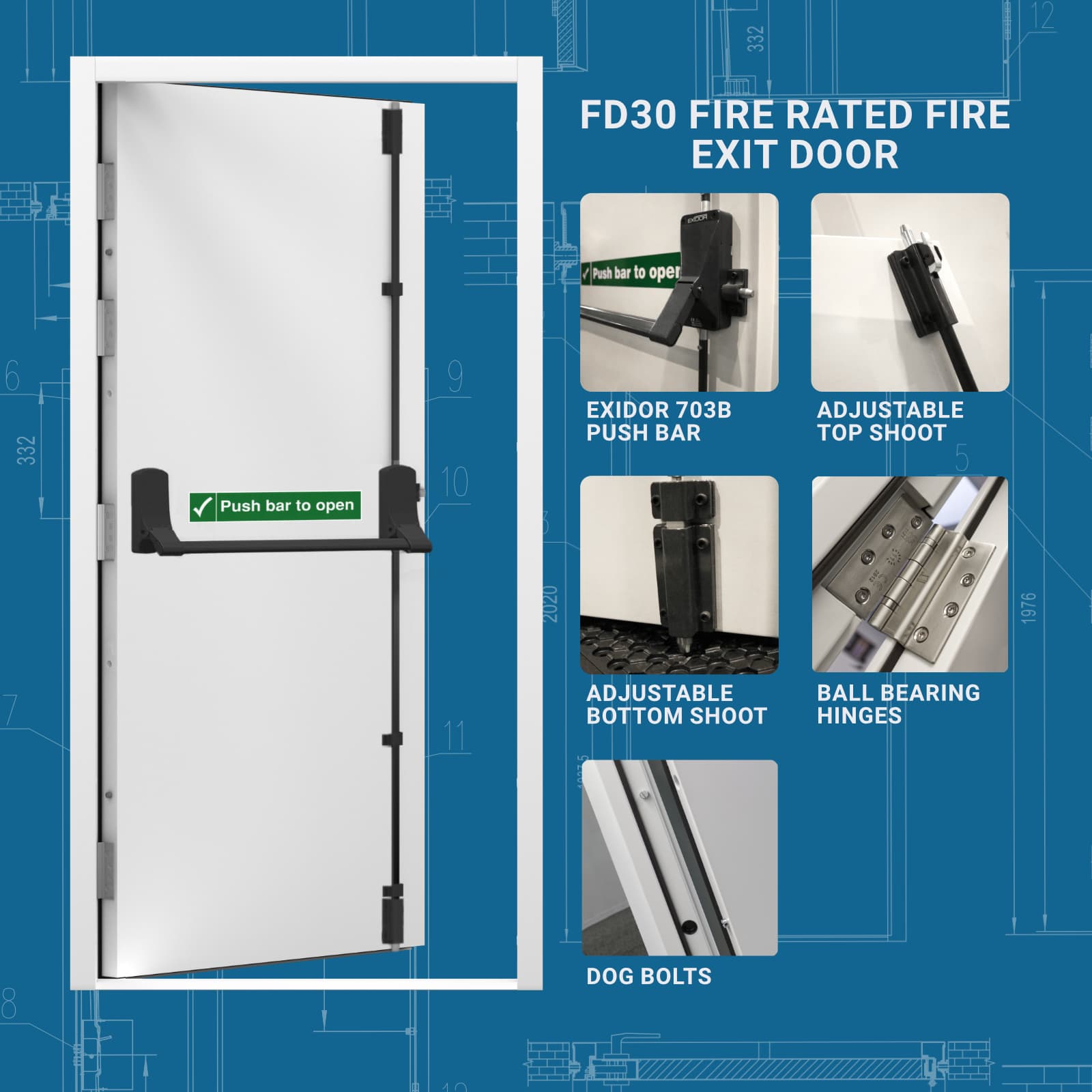

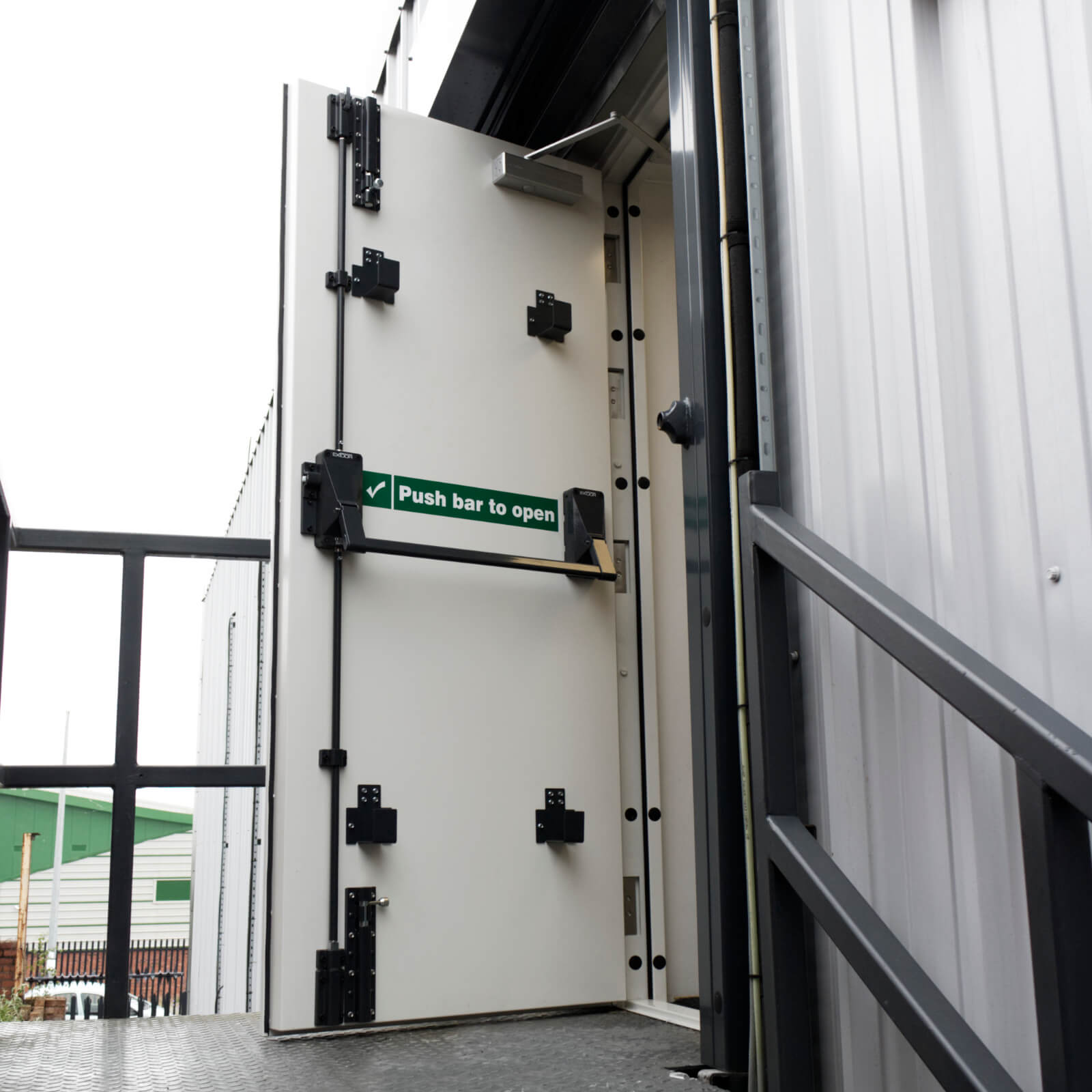

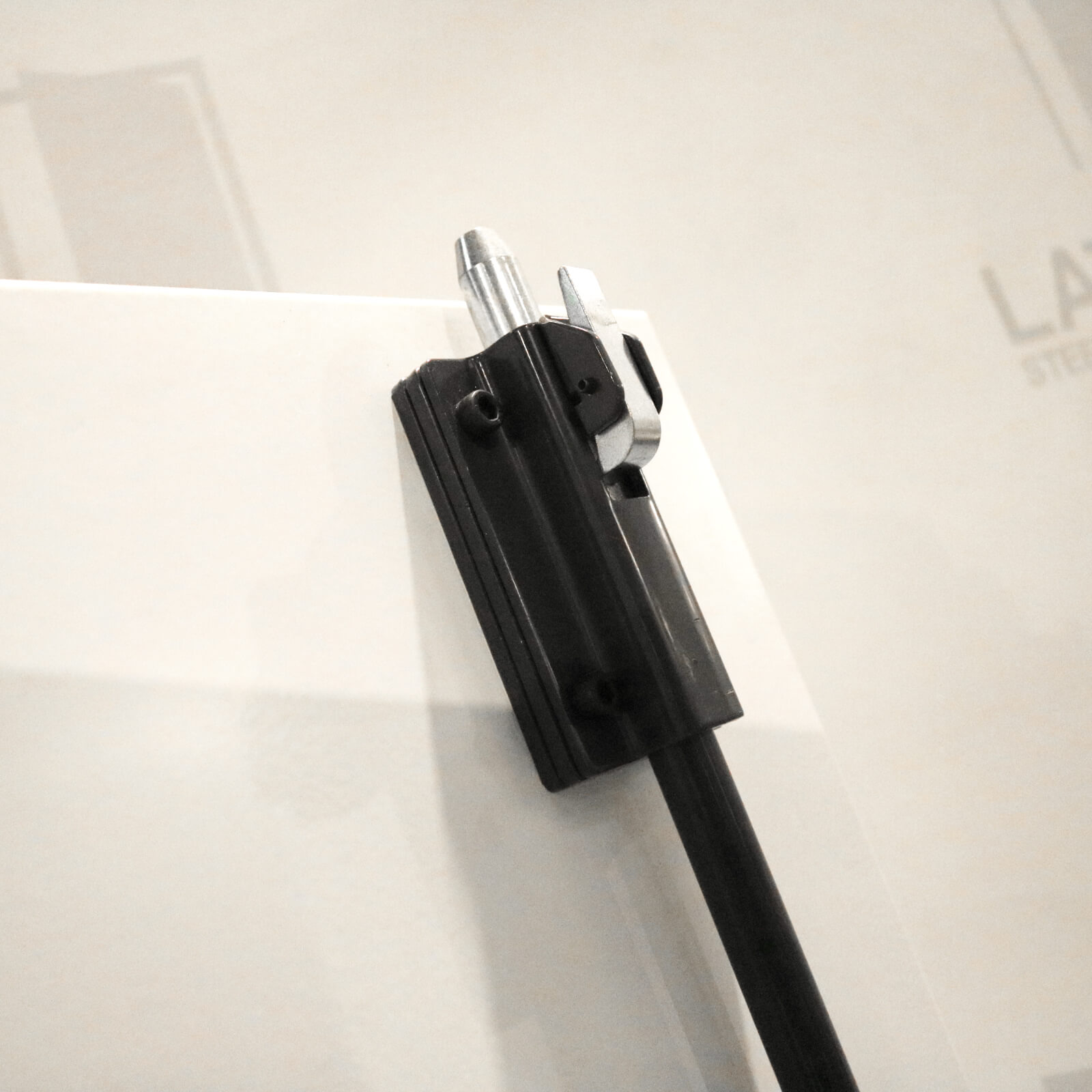

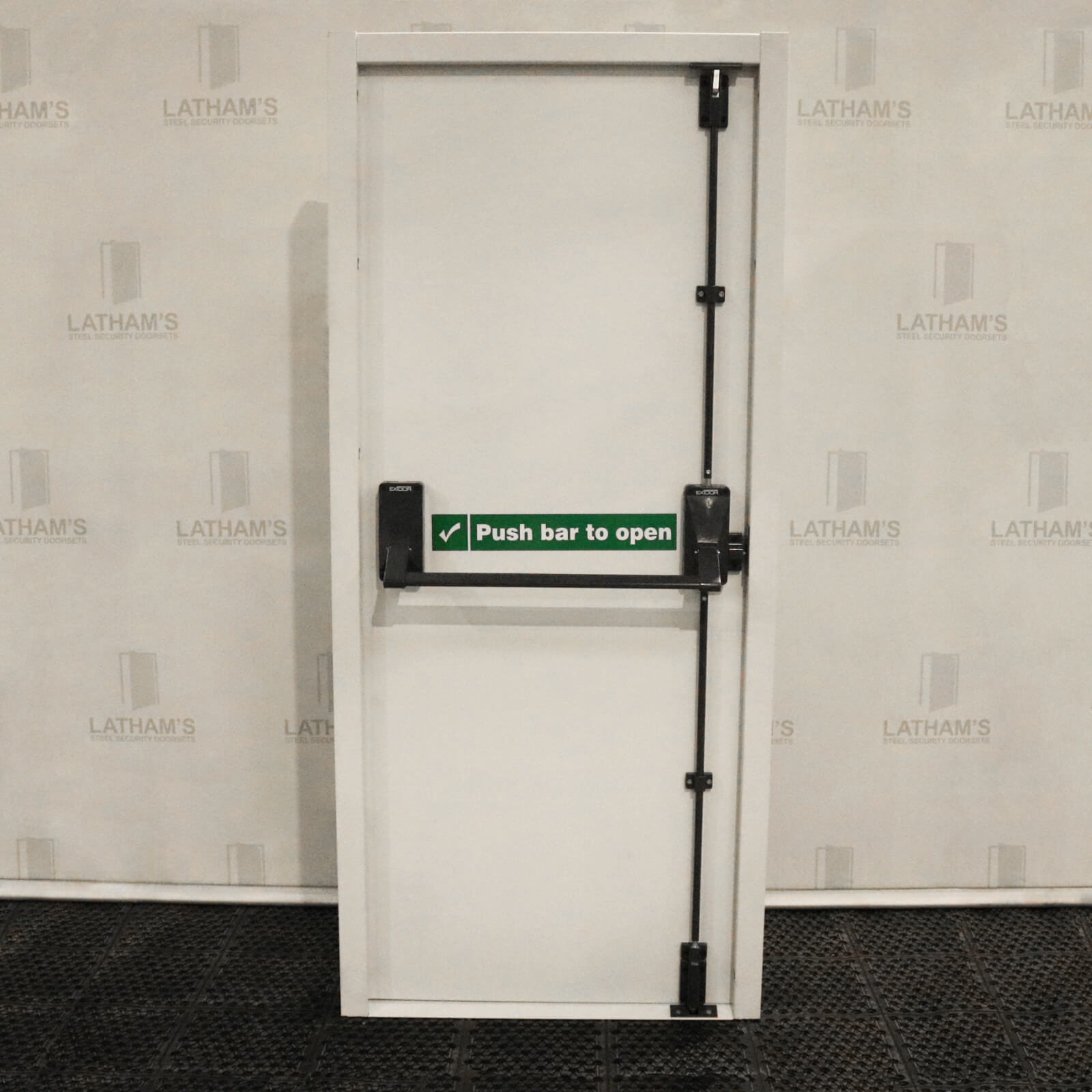

Our fire exit doors are not only safe, they are secure too. Due to it’s additional internal reinforcements and thicker gauge steel construction this door is capable of withstanding many types of attacks. Featuring 4 stainless steel hinges, 4 dog bolts and a 700 series 3-point heavy duty panic bar, our high security fire exit doors are a great option for any location which requires a fire exit door with top security.

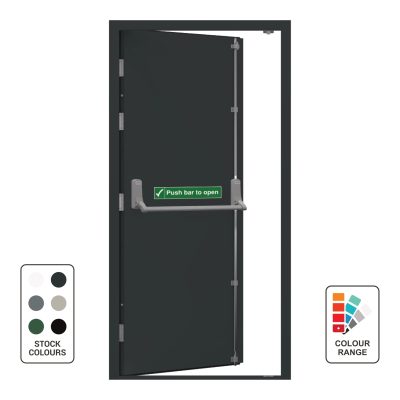

Supplied in Latham’s White from stock, powder coating is available to ensure it can be bold and grabs attention, or match brand or building colours.

PLEASE NOTE: Certification is not valid if additional accessories or frame extensions are installed. Only the selected options available with certified doors can be used.

Door Type

Fire Exit

Available Sizes (mm)

795×2020, 845×2020, 895×2020, 995×2020, 1095×2020, 1185×2020

Finish

White powder coat from stock, choice of colours available

Design

Plain door with flush panel

Door Frame Material

2.0mm Galvanised steel

Door Frame Depth

110mm

Door Leaf Material

Double skinned 1.2mm galvanised steel

Door Leaf Depth

70mm

Door Leaf Core

Mineral wool insulation

Internal Strengthening

2 x horizontal & 2 x vertical reinforced bars

U Value

1.99

Acoustic Value

38dB

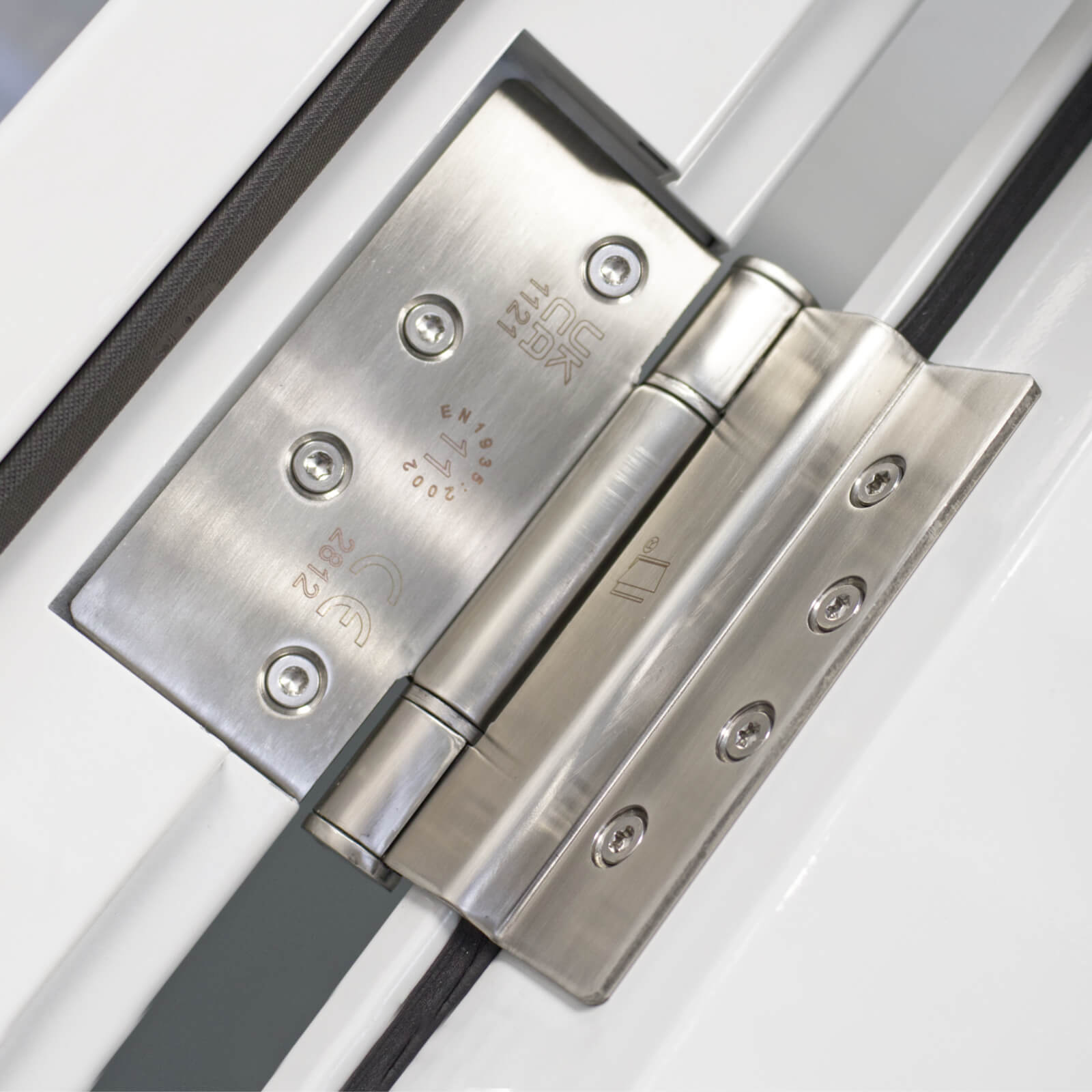

Hinges

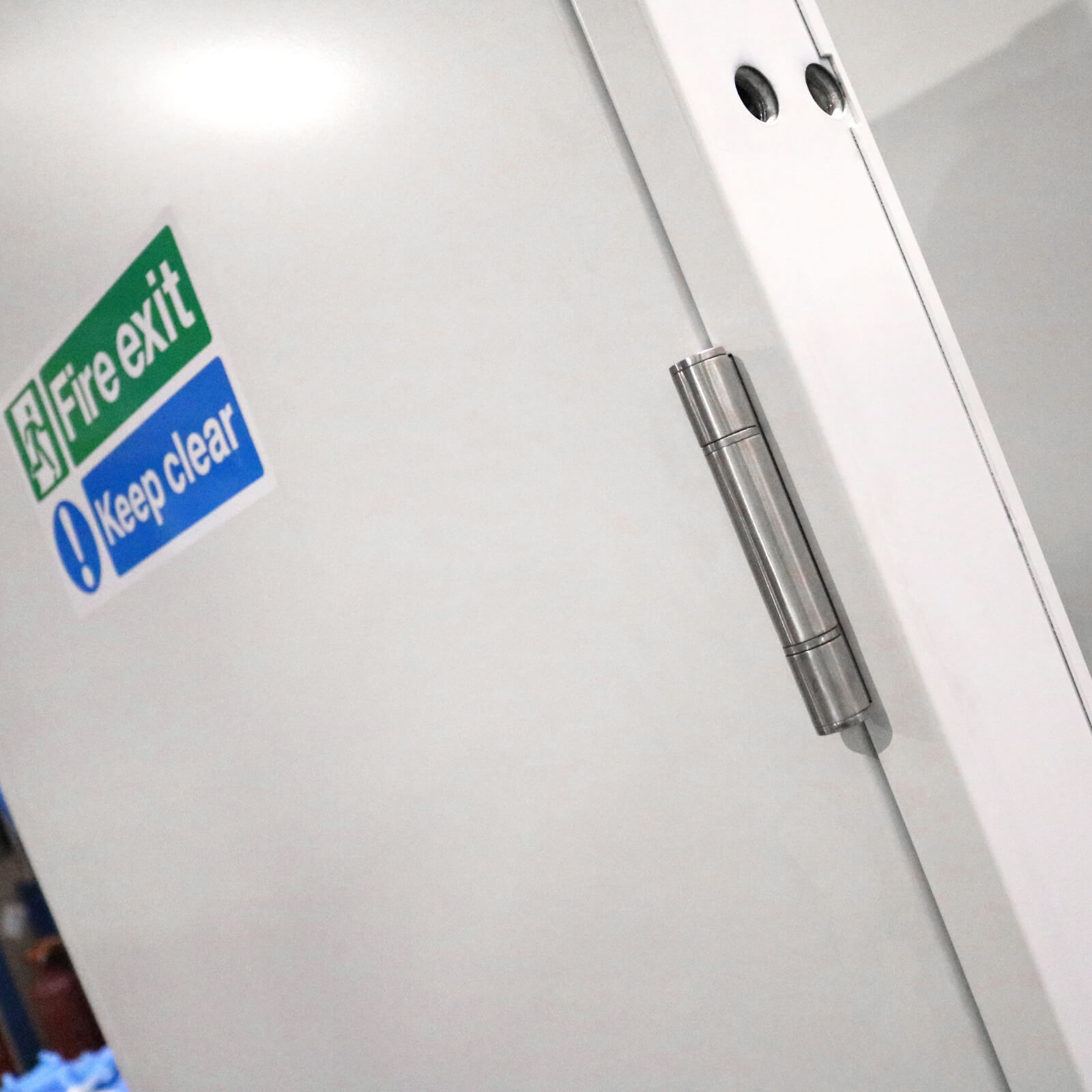

4 Large stainless steel ball bearing hinges

Handles

Exidor OAD (outer access devices) available

Locks or Door Furniture

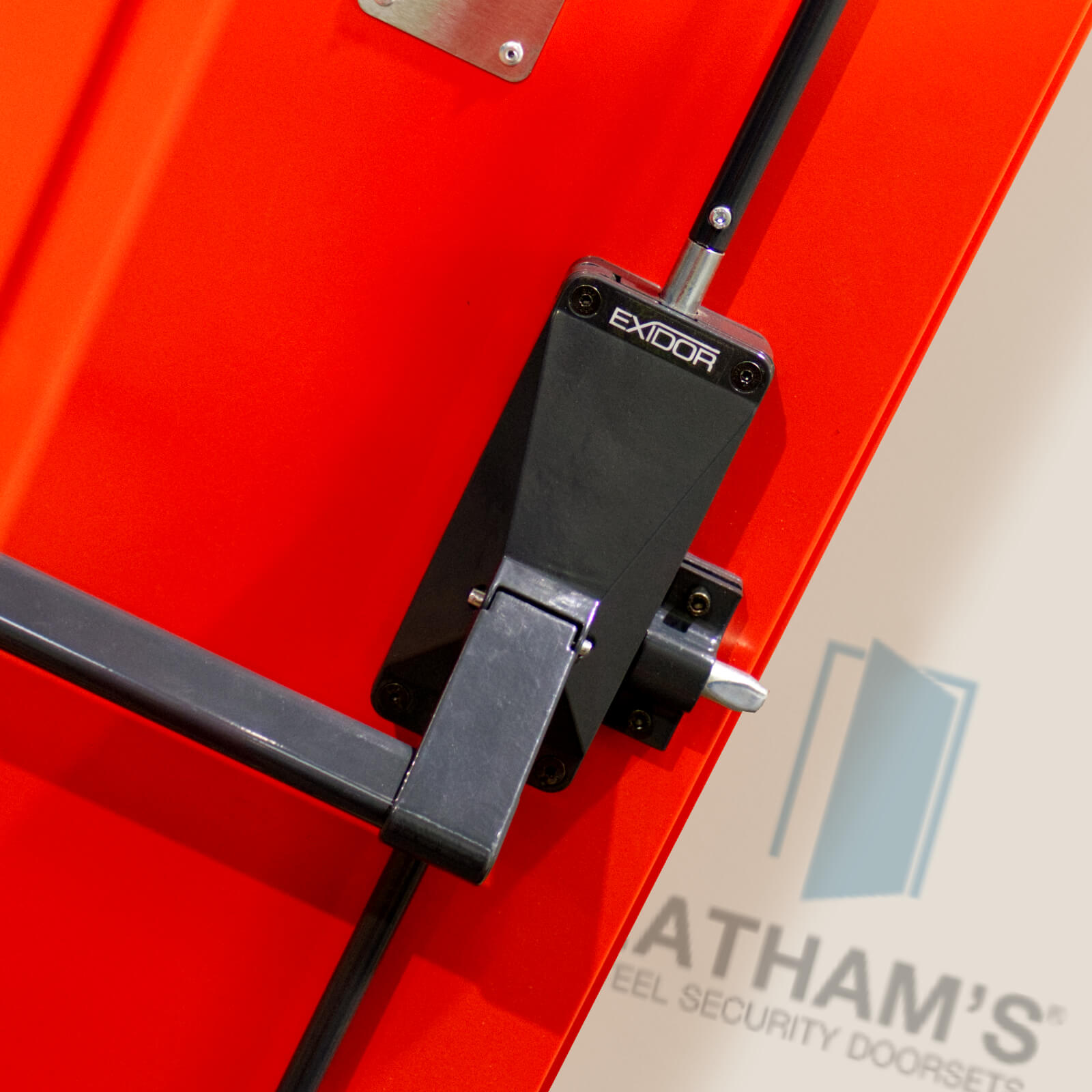

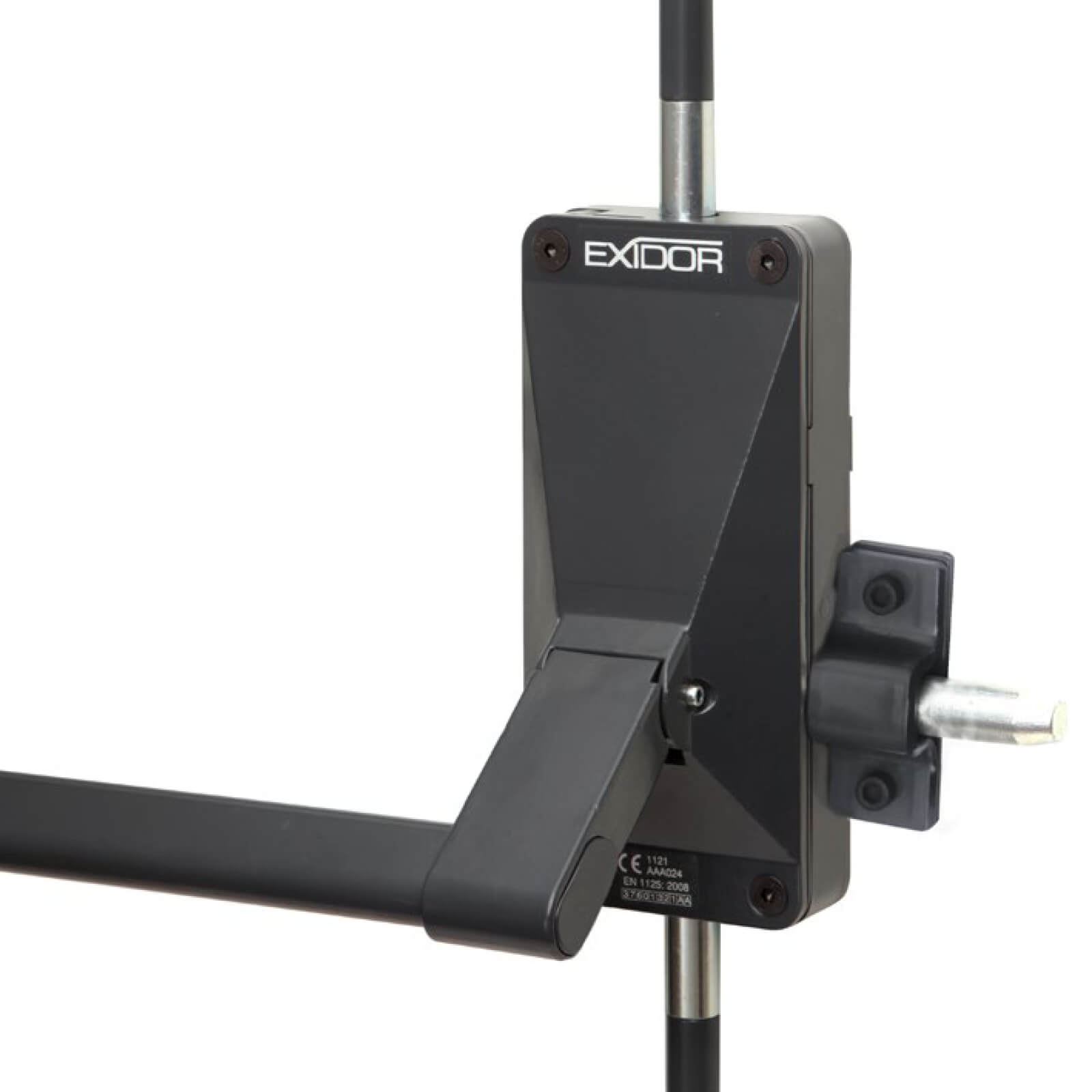

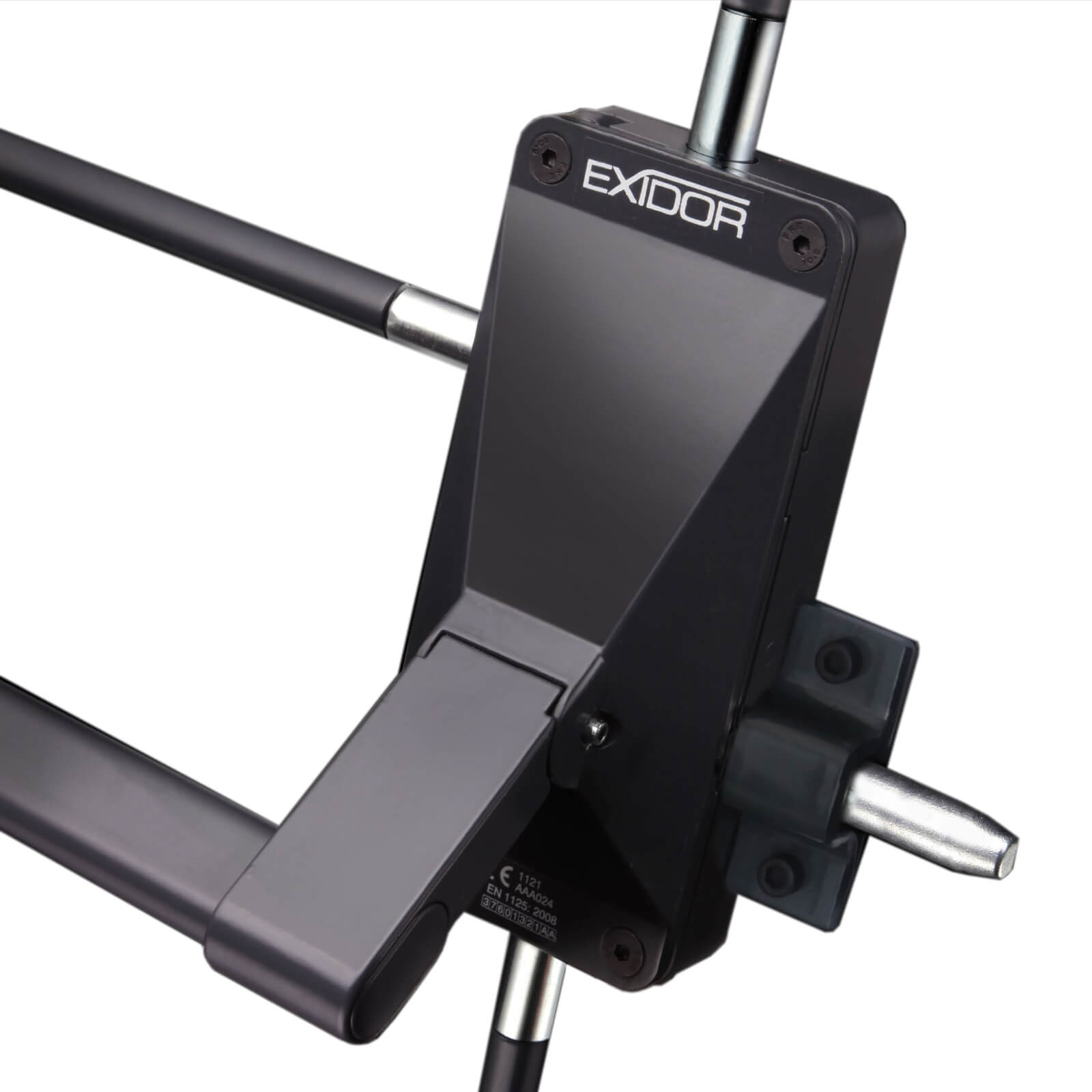

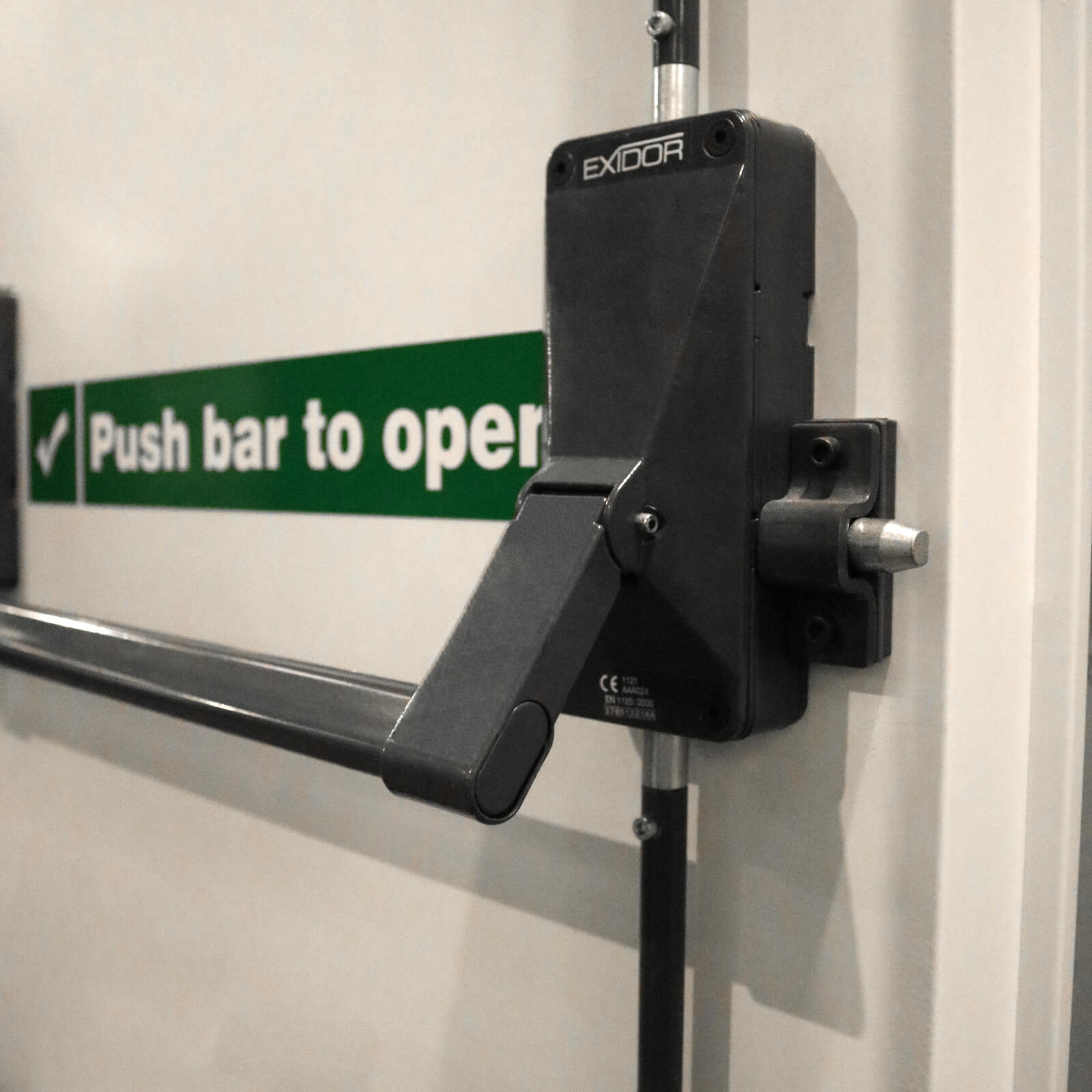

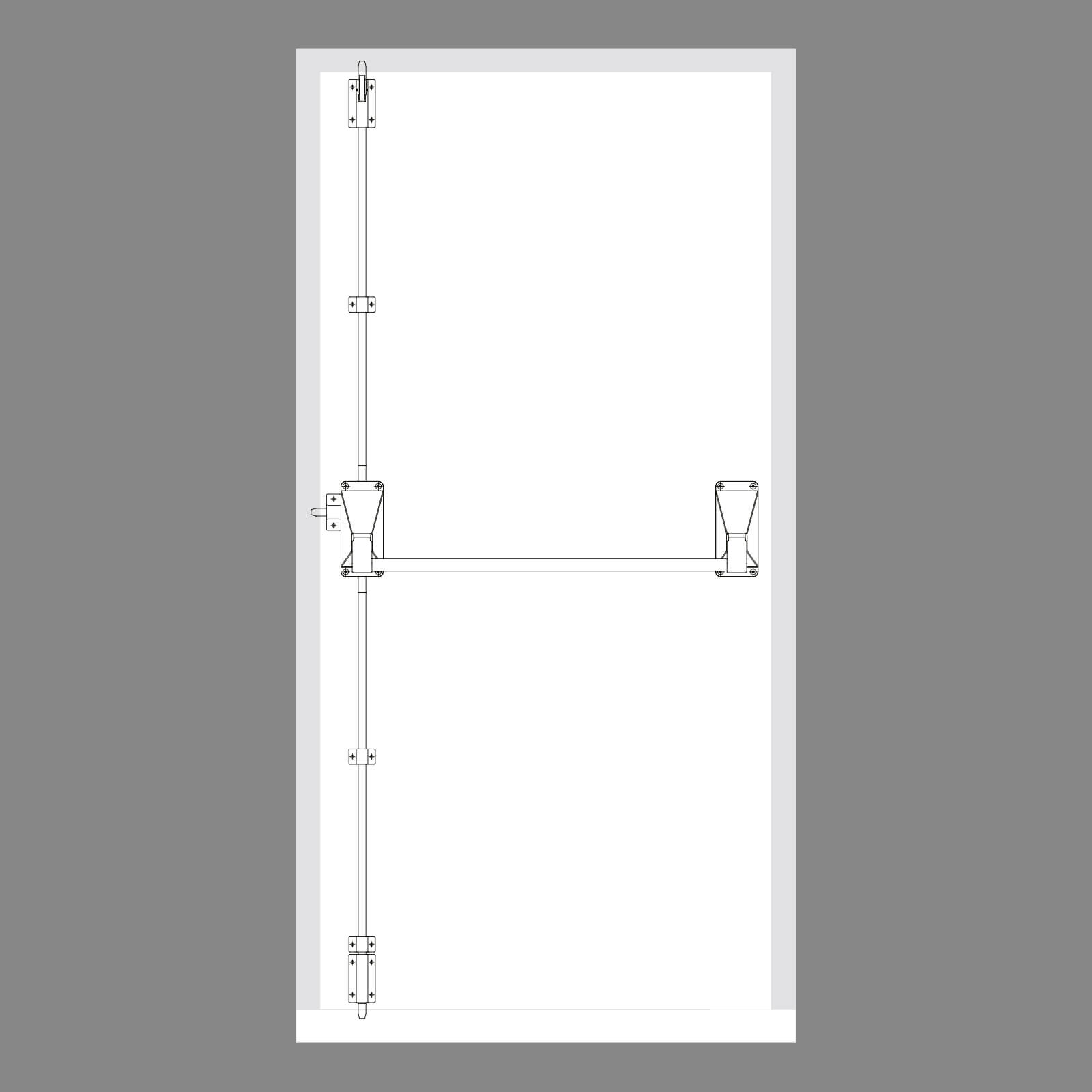

Exidor 700 series 703B panic bar

Seal

Rubber weather seal, sent separately

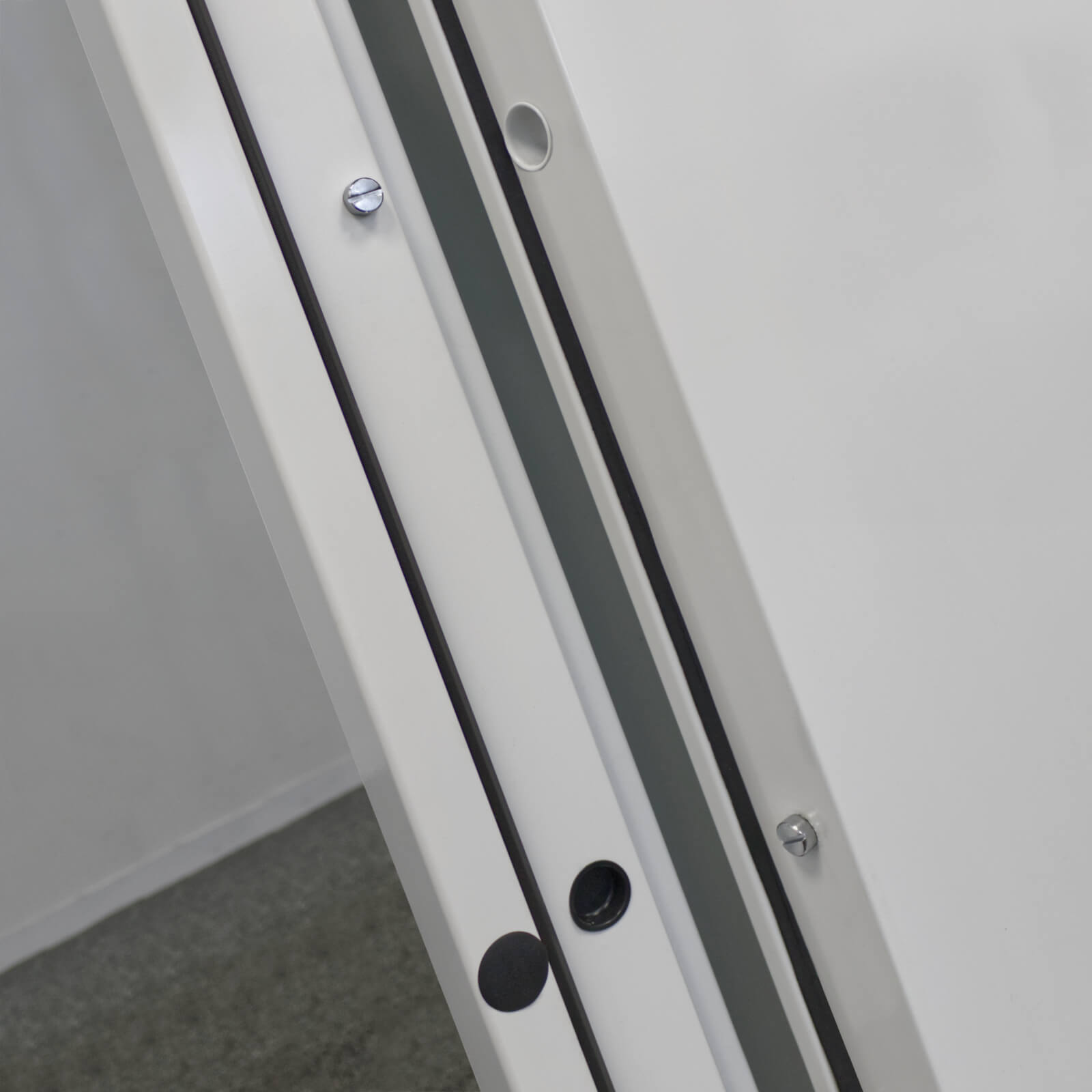

Dog Bolts

4 Dog bolts

Threshold

DDA (Disability Discrimination Act) compliant threshold

Jemmy Bar Lip

At door jam, hinge side & top. Superior ‘barb-like’ design

Construction

Fully welded construction

Security Type

High

CE Certification

Yes

Security Certification

None

Fire Rating Certification

FD30

Stock Product

Yes

Made to Measure Product

No

External or Internal Use

Suitable for external use

Example Door Purposes

Industrial Emergency Exit, Security Factory Panic Escape door, Industrial Fire Exit Door, commercial, warehouse Emergency Exit, Security Fire Escape

Videos



FAQs

How many keys come with the emergency exit doors?

Fire exit doors ordered with an OAD come with 2 keys
Additional keys are available – we have a key cutting machine on-site

How much do the emergency exit doors weigh?

Budget doors weigh on average 40kg*
Security doors weigh on average 85kg*
Double doors weigh on average 110kg*
*size dependant

Can I order this door opening inwards?

Fire exit doors cannot open inwards. In the event of emergency, the door is made to open fast, by rapidly pushing the push bar down and door outwards

What are the door sizes? What is the clear opening?

The sizes listed are external frame sizes.
We offer side panels and over panels if you need to add to the width or height of the door. We also offer a cut down service to reduce the height of the door
To calculate the clear opening (when the door is open), subtract 110mm from the width dimension. E.G. 895mm-110mm=760mm clear opening
See the video on how to measure here

What is Security Trim?

The security trim kit fits around the perimeter of the door frame, preventing any packing from being seen externally and making the door as a whole more secure.
It hides un-level or large gaps, hides the position of fixings eliminating the risk of tampering from intruders and crucially protects the fixings from attack.
See the security trim video here

To see all FAQs, click here

Downloads

Operation & Maintenance Manual

Download operation & maintenance manual
