Custom made steel fire double door
Custom made steel fire double door

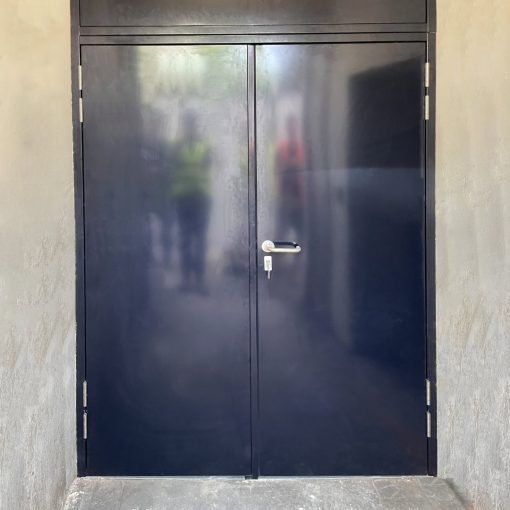

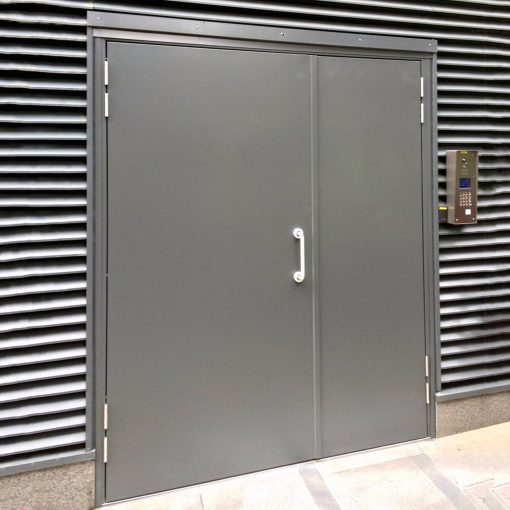

Made To Measure Fire Rated Double Door

From From £2,136.00 inc. VAT (£1,780.00 + VAT)

Our made to measure double fire rated doors are fully tested and certified to BS EN 16034 and BS EN 14351-1 standards.

Rated for up to 4 hours of fire protection (FD240) and suitable for internal use, these doors are also CE marked and can be fitted externally. They are available powder coated to any RAL and BS colour with options.

These doors also have a door closer fitted to the internal side of the door in accordance with fire protection regulations.

If you require a door which isn’t covered by our options we can tailor a quote to your specific requirements.

  • Total

Lead Times
Standard lead time for a made to measure door is 22 days from return of signed-off drawings

SKU: M2M-FRDD Categories: ,

Fire rated steel doors expand into their frame under heat, sealing off a room where a fire has broken out to prevent the spread of smoke and flames. They play an important role in emergency fire procedures and can be installed to help your building comply with fire safety legislation.

Doors are supplied complete with frame and full certification is provided.

Leaf & Half Doors:

  • Max Width: 1800mm
  • Max Height: 2900mm

Double Doors:

  • Max Width: 2800mm
  • Max Height: 2900mm

Specification:

  • Fire resistant up to 4 hours which covers:
    • FD30: 30 minute fire rated
    • FD60: 1 hour fire rated
    • FD120: 2 hour fire rated
    • FD180: 3 hour fire rated
    • FD240: 4 hour fire rated
  • Tested to standard BS EN 16034 and BS EN 14351-1
  • Door leaf constructed from a minimum of 1.2mm zinc plated steel
  • Frame constructed from a minimum of 1.5mm zinc plated steel
  • Dufaylite core used for its high impact measures and thermal resistance
  • High quality draught and fire seals all around
  • Fire door integral anti jemmy bar lip
  • DDA compliant fire door threshold
  • Heavy duty lever handles with euro profile cylinder (single, double & thumbturn)
  • Supplied with 2 keys
  • A minimum of 4 stainless steel hinges (BS 1935.2002 Grade 13)
  • High quality powder coat finish to standard RAL & BS colour

Optional Extras:

If you require a door with any of these optional extras we can quote to your specific requirements.

  • Locking systems and electric strikes

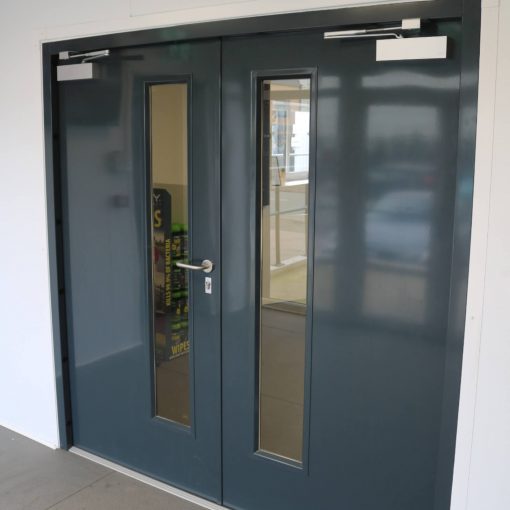

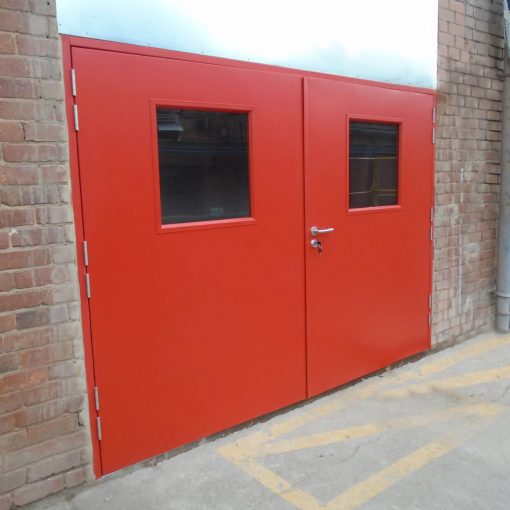

  • Vision Panels – can’t exceed >0.465 m2/per leaf
  • Louvre Panels – can’t exceed >0.465 m2/per leaf – PLEASE NOTE: LOUVRES REDUCE THE FIRE RATING TO 2 HOURS (FD120)
  • Door closers and door stays
  • Kick plates and push plates
  • None stock RAL & BS colours available on request (may incur additional charge)
Locks or Door Furniture

Single sashlock (double euro cylinder & lever handle)
Fire Rating

FD30 (30 minutes), FD60 (1 hour), FD120 (2 hours), FD180 (3 hours), FD240 (4 hours)
Fire Door Leaf

1.2mm Zinc Coated Steel
Fire Door Frame

1.5mm Zinc Coated Steel
Fire Door Threshold

Made from aluminium and in compliance with the Disability Discrimination Act (DDA)

Downloads

Fitting Instructions
Download fitting instructions
