Left hinged opening out fire rated door

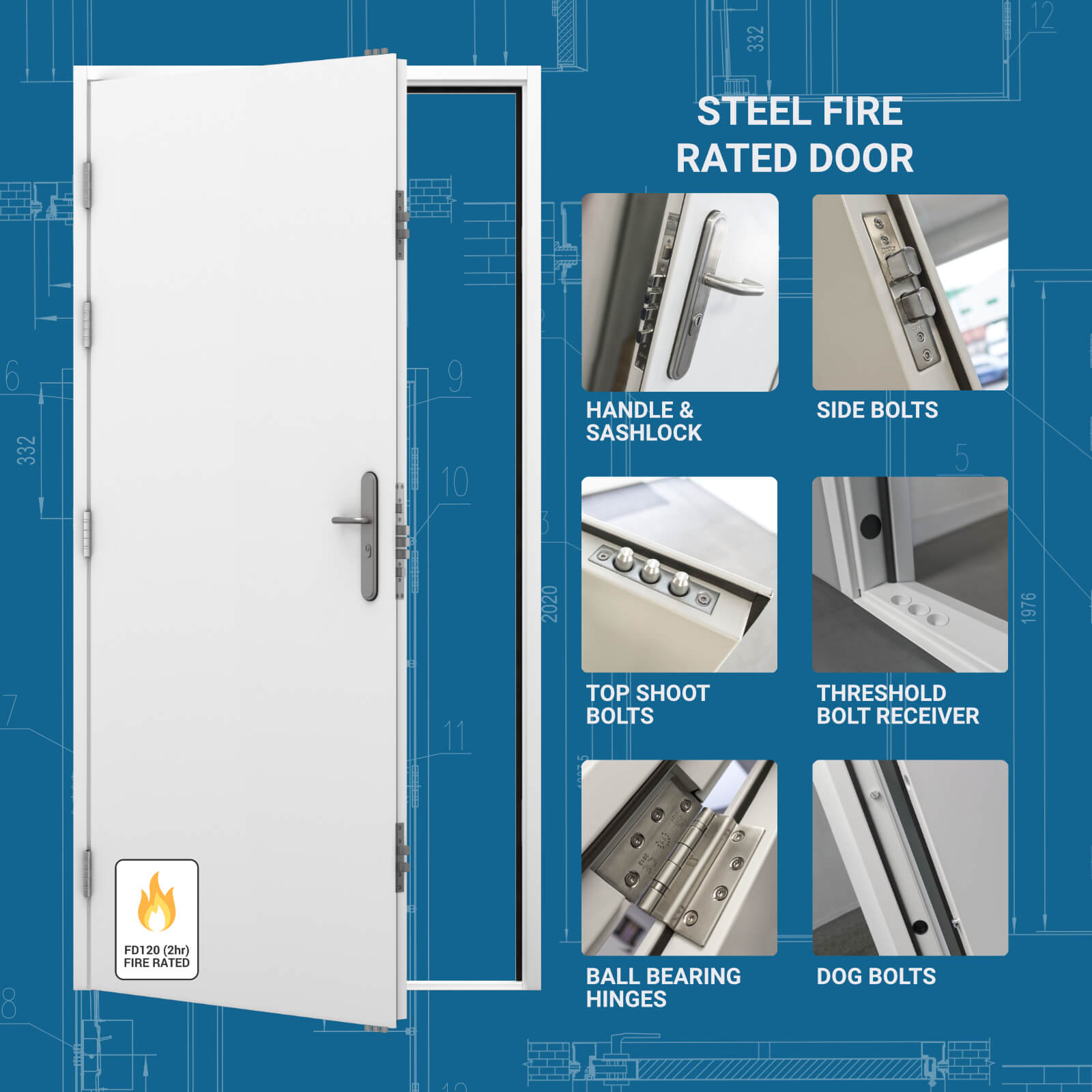

Steel Fire Rated Door

From £719.99 inc. VAT (£599.99 + VAT)

Our steel fire rated doors are certified up to FD120, offering a maximum of 2 hours of fire safety, making them suitable for FD30 and FD60 purposes too.

Perfect for internal fire doors where a fire rated door is required, they are finished in a white powdercoat from stock, with a range of colour options if required. This certification is also available on our Personnel Access Door sizes 890 & 990 x 2095, which are finished in RAL 7016 Anthracite Grey from stock.

In accordance with fire protection regulations, these doors come supplied with a door closer pre-fitted on either the push or pull side. (please select when purchasing)

If our stock sizes aren’t suitable to your requirement we have custom made fire rated doors also available.

  • Total

PLEASE NOTE: These doors are manufactured to order for certification.

Lead Times
Standard door: 5 working days + delivery
Powder coated door: 10 working days + delivery
Fast track options: Contact us for availability

SKU: HDP-FR-DOOR Category:

Click here to view our Warrington certifications

Our steel fire rated doors offer increased fire protection. They have been tested to FD120 standards which means they are suitable for applications requiring:

FD30 – 30 minutes of fire rating
FD60 – 60 minutes of fire rating
FD120 – 2 hours of fire rating

Fire rated doors help by slowing the spread of fire, and are a legal requirement for commercial properties. Suitable for commercial and industrial settings such as offices, retail units, hospitality & leisure premises, school, nurseries, and doctors surgeries, these doors are also ideal for residential use for internal linking garages.

They all feature our trademark 19-point locking system, a 3* kitemark security cylinder, and a Hooply 918902 stainless steel handle. Our fire doors are not only safe, they are secure too.

PLEASE NOTE: Certification is not valid if additional accessories or frame extensions are installed. Only the selected options available with certified doors can be used.

Door Type

Personnel Door

Available Sizes (mm)

695×2020, 795×2020, 845×2020, 895×2020, 910×2065, 995×2020, 1095×2020, 1195×2020, 495×2020 (Narrow), 595×2020 (Narrow)

Finish

RAL 7016 – Anthracite Grey as standard, White powder coat from stock, choice of colours available

Design

Plain door with flush panel

Door Frame Material

1.8mm Galvanised Steel

Door Frame Depth

90mm

Door Leaf Material

Double skinned 1.0mm galvanised steel

Door Leaf Depth

50mm

Door Leaf Core

Mineral wool insulation

Internal Strengthening

2 x horizontal & 1 x vertical reinforced bars

U Value

2.20

Acoustic Value

35dB

Hinges

4 Stainless steel ball bearing hinges

Handles

918902 Stainless Steel Security Handle

Locks or Door Furniture

Latham's trademark 19 point locking system

Cylinder

UAP 3* Kitemark cylinder

Seal

Intumescent Seal

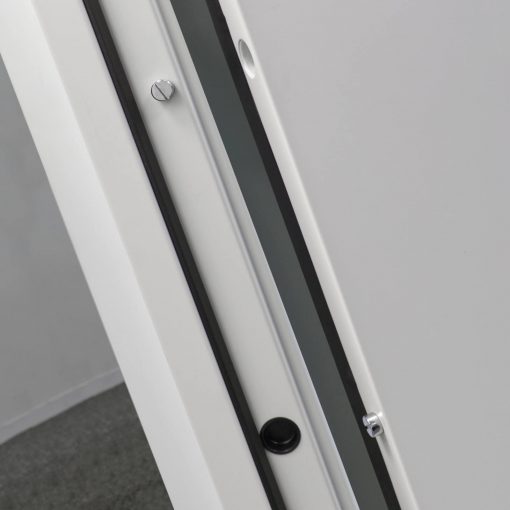

Dog Bolts

4 Dog bolts

Threshold

DDA (Disability Discrimination Act) compliant threshold

Jemmy Bar Lip

At door jam, hinge side & top

Construction

Fully welded construction

Security Type

High

CE Certification

No

Security Certification

PAS 24:2016 Certified (optional upgrade)

Fire Rating Certification

FD30, FD60, FD120

Stock Product

Yes

Made to Measure Product

No

External or Internal Use

Suitable for internal use only

Example Door Purposes

Warehouse door, retail/shop door, office security door, security personnel door, site container door, portakabin door

Videos


FAQs

How do I choose the hinge side and opening? (Handing)

Hinge side and opening is determined viewed from outside.
Example 1: LH hinge open out: hinges are on the LH side, handle is on the right and you pull the door towards you.
Example 2: RH hinge open in: hinges are on the RH side, handle is on the left and you push the door away from you.
See our handy illustration here

What is the lead time?

Stock Door (white, no modifications) – in stock – 0 days
Stock Door (white, modified e.g. installed accessories, vision panel e.t.c) – 4 working days
Re-Powder Coated Stock Door, with or without accessories installed (not white) – 10 working days
Fast track options are also available

How many keys come with the door?

Personnel doors come with 3 usable keys
Additional keys are available – we have a key cutting machine on-site
See our cylinder options video here

How much do the steel doors weigh?

Budget doors weigh on average 40kg*
Security doors weigh on average 85kg*
High Security (Ultra) doors weigh on average 100kg*
Double doors weigh on average 110kg*
*size dependant

What are the door sizes? What is the clear opening?

The sizes listed are external frame sizes.
We offer side panels and over panels if you need to add to the width or height of the door. We also offer a cut down service to reduce the height of the door
To calculate the clear opening (when the door is open), subtract 110mm from the width dimension. E.G. 895mm-110mm=760mm clear opening
See the video on how to measure here

What is Security Trim?

The security trim kit fits around the perimeter of the door frame, preventing any packing from being seen externally and making the door as a whole more secure.
It hides un-level or large gaps, hides the position of fixings eliminating the risk of tampering from intruders and crucially protects the fixings from attack.
See the security trim video here

To see all FAQs, click here

Downloads

Operation & Maintenance Manual

Download operation & maintenance manual
