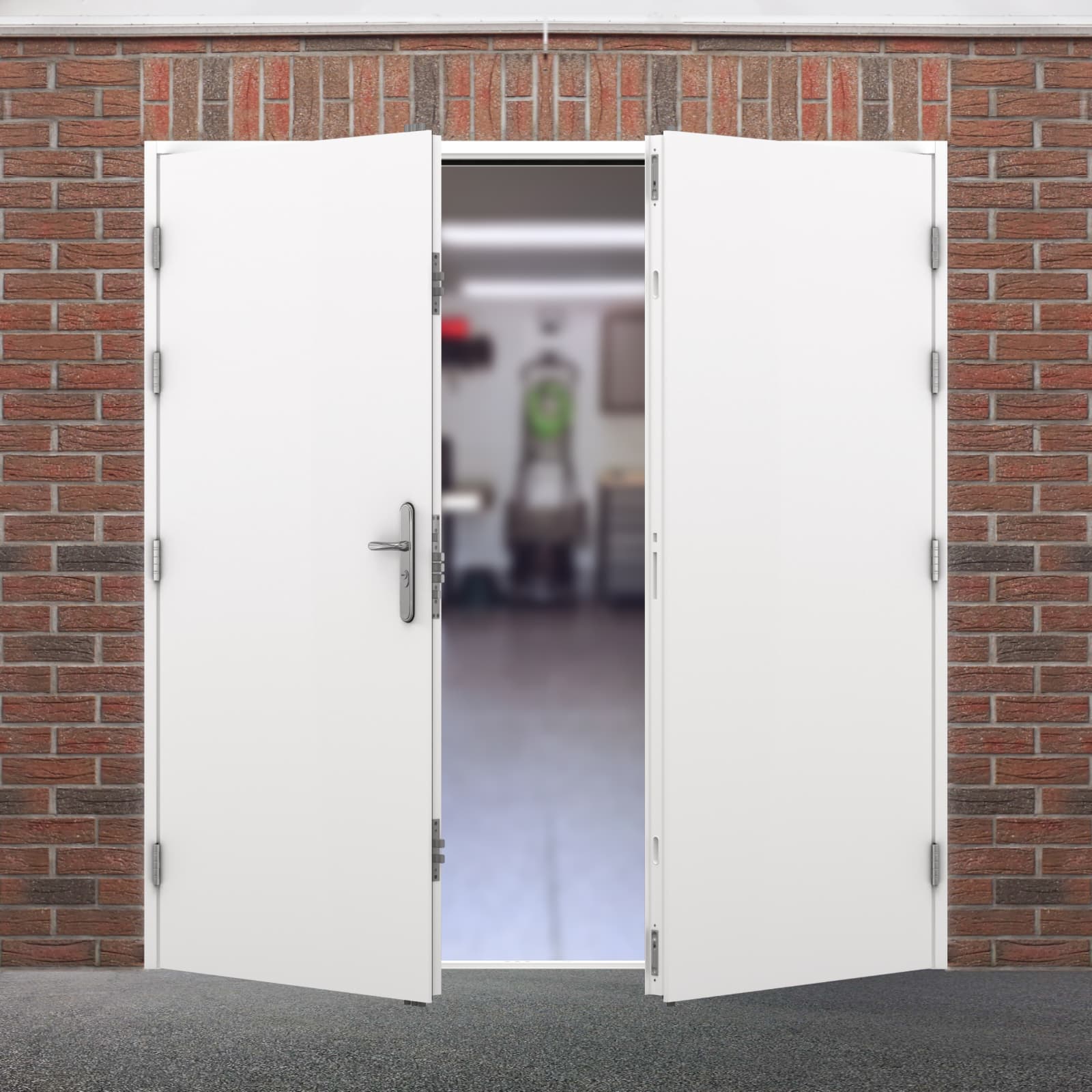

Side hinged garage door

Security Side Hinged Garage Door

From From £499.99 inc. VAT (£499.99 + VAT)

Our steel double doors are now large enough to be used as security side hinged garage doors, taking advantage of their naturally strong construction, keeping your car and tools safe.

Available for next day delivery from stock in white, or re-powder coated in a wide range of colours to suit your property in frame sizes from 1295mm to 2195mm wide.

  • Total

Lead Times
Stock white door: Same day despatch available
Modified white door: 5 working days + delivery
Powder coated door: 10 working days + delivery
Fast track options: Contact us for availability

SKU: SIDE-HIN-GAR-DOOR Category: GTIN: 5060479951284

Securing your home

Our high security side hinged garage doors are a great way to add an extra level of security to your home, ensuring your motor and your belongings are safely stored behind a galvanised steel high security double door.

Personalise your Property

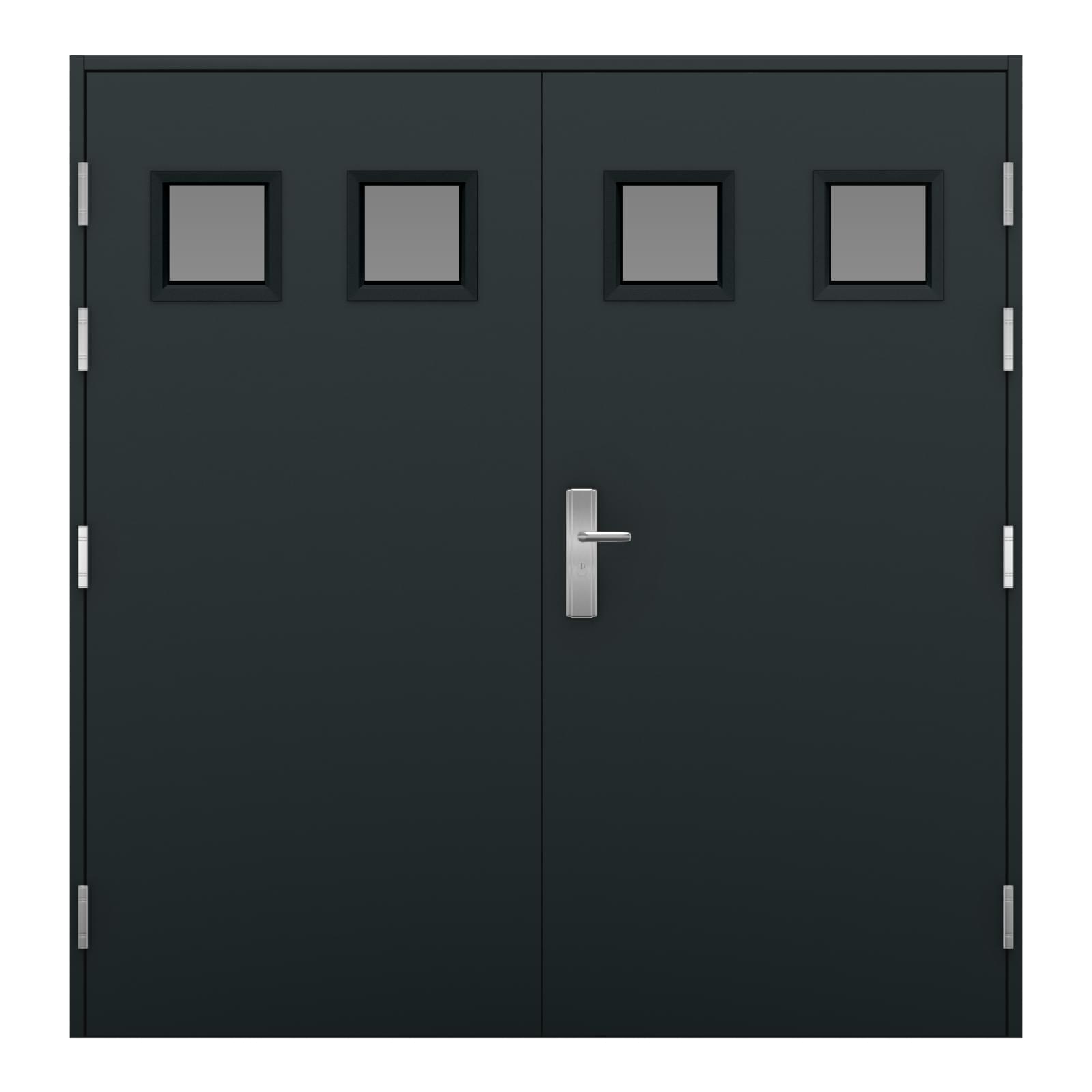

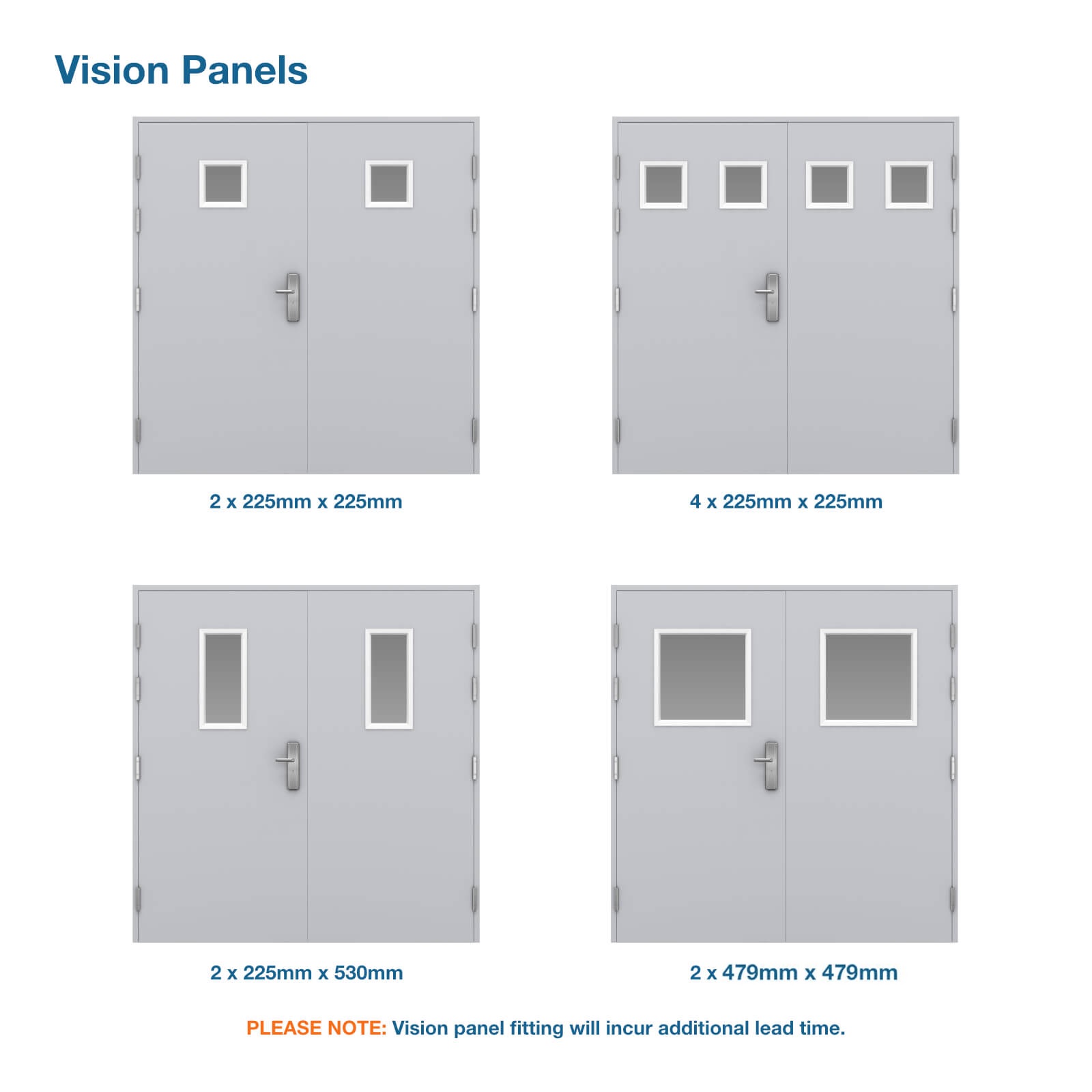

Available as standard coloured in signal white, all of our garage personnel doors can be powder coated to almost any colour to personalise your door to suit the surroundings. For a further touch of personalisation, you can also choose to add glazing panels.

Multi-Locking Points

Our high security garage doors feature a total of 21 points which secure it to the frame. This includes 3 shoot-bolts to the top of the frame, 8 shoot-bolts into the passive leaf and 12 fixed locking points (dog bolts) making this an excellent choice of door to secure your garage.

Need it Soon

All of our stock doors are available for next day delivery via a dedicated courier or can be collected from our Head Office in Oldbury, West Midlands.

Design

Plain door with flush panel

Door Frame Material

1.8mm Galvanised Steel

Door Frame Depth

90mm

Door Leaf Material

Double skinned 1.0mm galvanised steel

Door Leaf Depth

50mm

Door Leaf Core

Mineral wool insulation

Internal Strengthening

2 x horizontal & 2 x vertical reinforced bars per door

Hinges

8 Stainless steel ball bearing hinges

Handles

Hooply handles (5586)

Locks or Door Furniture

Active leaf: 10 point locking system | Passive leaf: Flush bolts top and bottom

Cylinder

UAP Tradelock Euro Cylinder, security upgrade available

Seal

Nylon self adhesive V-seal

Dog Bolts

4 Dog bolts on each door leaf (8 in total)

Threshold

DDA (Disability Discrimination Act) compliant threshold

Jemmy Bar Lip

At door jam, hinge side & top + astragal

Construction

Fully welded construction

Security Type

Medium

CE Certification

Yes

Fire Rating Certification

None

Stock Product

Yes

Made to Measure Product

No

External or Internal Use

Suitable for external and internal use

Example Door Purposes

Security garage side door, security rear shop door, warehouse security door, office security door, acoustic studio security door

Videos



FAQs

How do I choose the hinge side and opening? (Handing)

Hinge side and opening is determined viewed from outside.
Example 1: LH hinge open out: hinges are on the LH side, handle is on the right and you pull the door towards you.
Example 2: RH hinge open in: hinges are on the RH side, handle is on the left and you push the door away from you.
See our handy illustration here

What is the lead time?

Stock Door (white, no modifications) – in stock – 0 days
Stock Door (white, modified e.g. installed accessories, vision panel e.t.c) – 4 working days
Re-Powder Coated Stock Door, with or without accessories installed (not white) – 10 working days
Fast track options are also available

How many keys come with the door?

Personnel doors come with 3 usable keys
Additional keys are available – we have a key cutting machine on-site
See our cylinder options video here

How much do the steel doors weigh?

Budget doors weigh on average 40kg*
Security doors weigh on average 85kg*
High Security (Ultra) doors weigh on average 100kg*
Double doors weigh on average 110kg*
*size dependant

What are the door sizes? What is the clear opening?

The sizes listed are external frame sizes.
We offer side panels and over panels if you need to add to the width or height of the door. We also offer a cut down service to reduce the height of the door
To calculate the clear opening (when the door is open), subtract 110mm from the width dimension. E.G. 895mm-110mm=760mm clear opening
See the video on how to measure here

What is Security Trim?

The security trim kit fits around the perimeter of the door frame, preventing any packing from being seen externally and making the door as a whole more secure.
It hides un-level or large gaps, hides the position of fixings eliminating the risk of tampering from intruders and crucially protects the fixings from attack.
See the security trim video here

To see all FAQs, click here

Downloads

Operation & Maintenance Manual

Download operation & maintenance manual
