Example of a insulated steel door

Custom Made Steel Thermally Rated Door

From From £1,620.00 inc. VAT (£1,350.00 + VAT)

Our custom made insulated steel doors feature a specialist mineral board core for insulation which allows them to achieve a 1.6 U-Value.

Available up to a maximum of 2700mm wide x 2900mm high, they can be manufactured as either a personnel or fire exit door, or prepared for electronic access control to be fitted.

PLEASE NOTE: Double doors between 1300mm – 1800mm width have a U-value of 1.9.

  • Total

SKU: M2M-INSU Category:

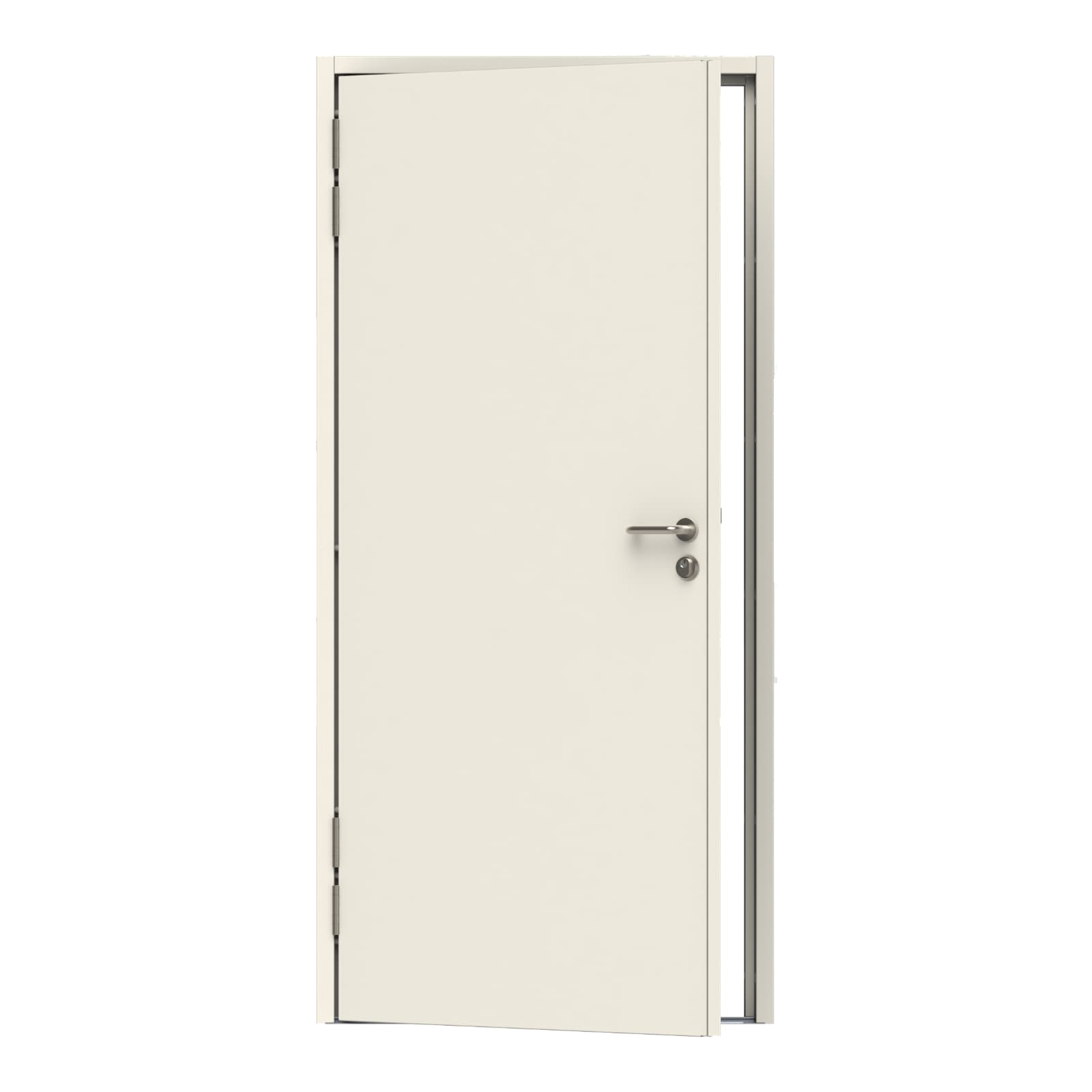

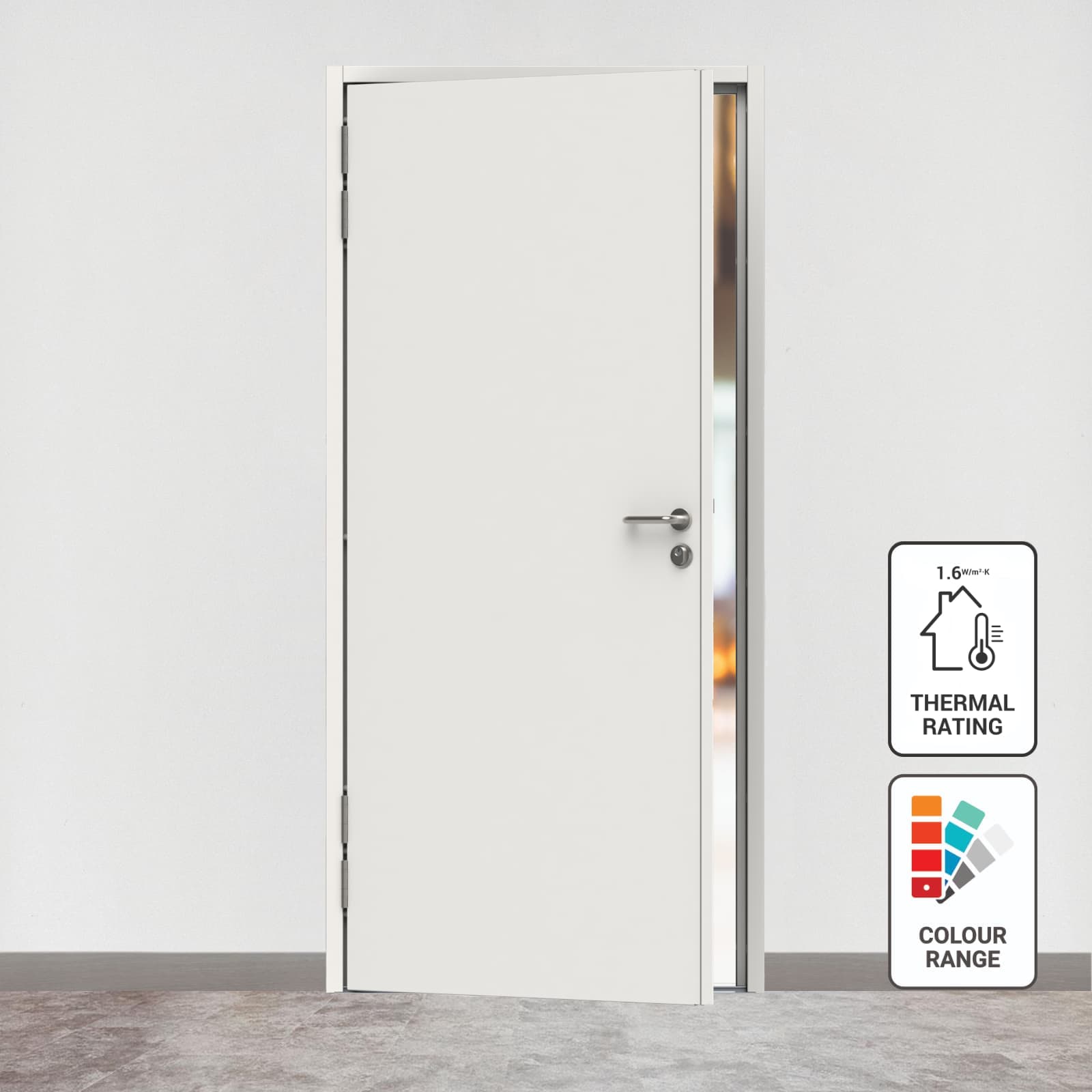

Single Thermally Rated Steel Doors (1.6 U-Value):
• Min Width: 990mm
• Max Width: 2900mm
• Min Height: 1885mm
• Max Height: 2900mm

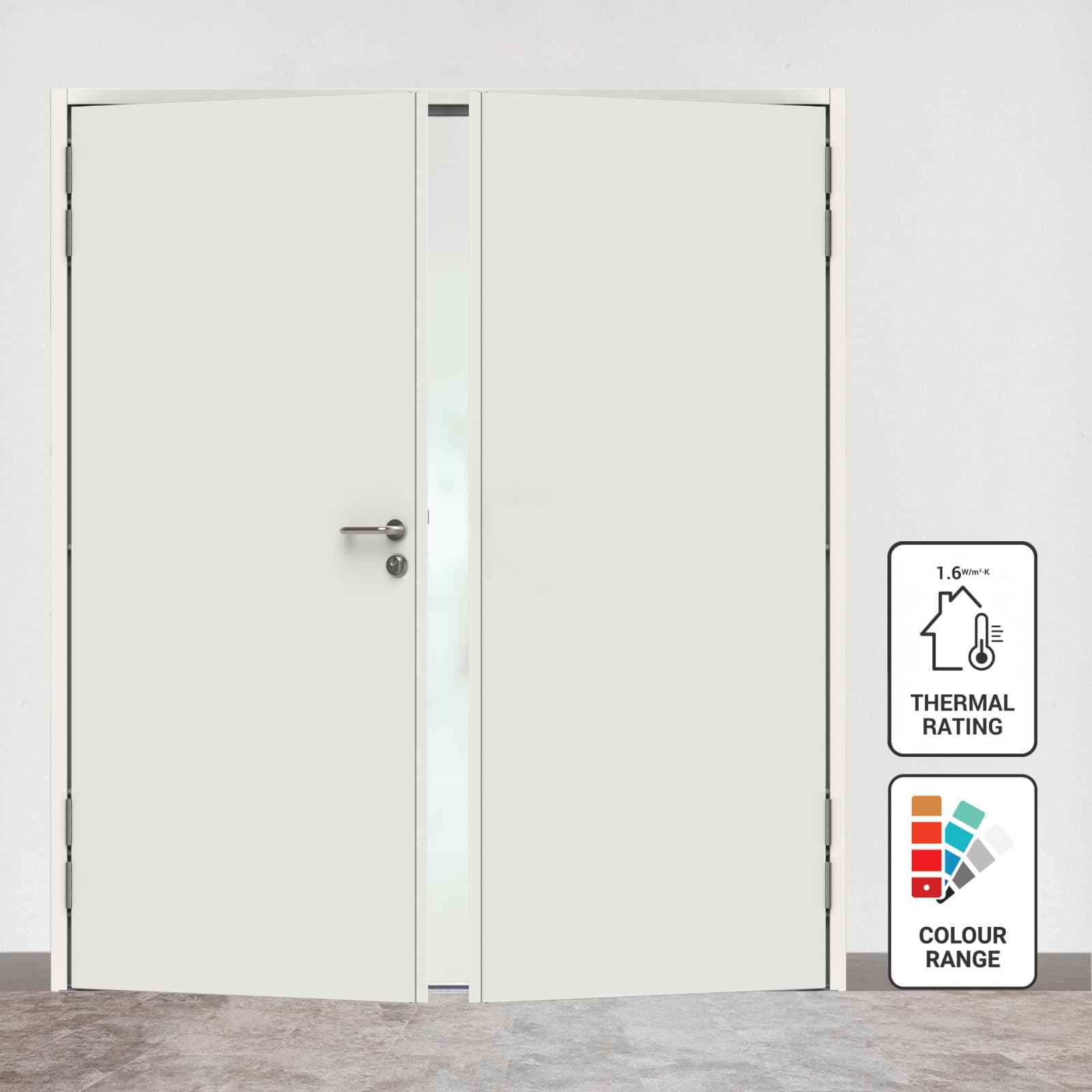

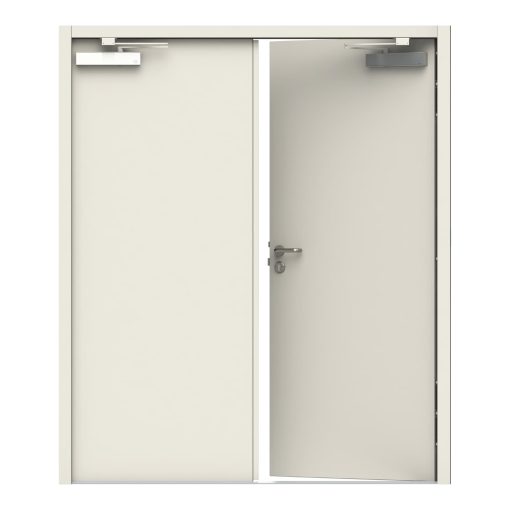

Double Thermally Rated Steel Doors (1.6 U-Value):
• Min Width: 1800mm
• Max Width: 2700mm
• Min Height: 1885mm
• Max Height: 2900mm

Double Thermally Rated Steel Doors (1.9 U-Value):
• Min Width: 1300mm
• Max Width: 1800mm
• Min Height: 1885mm
• Max Height: 2900mm

Specification:
• Door leaf constructed from a minimum of 1.2mm zintec
• Door core contains mineral board core
• Frame constructed from a minimum of 1.5mm zintec
• Door frame insulated with mineral wool
• High quality draught seals
• Integral anti jemmy bar lip

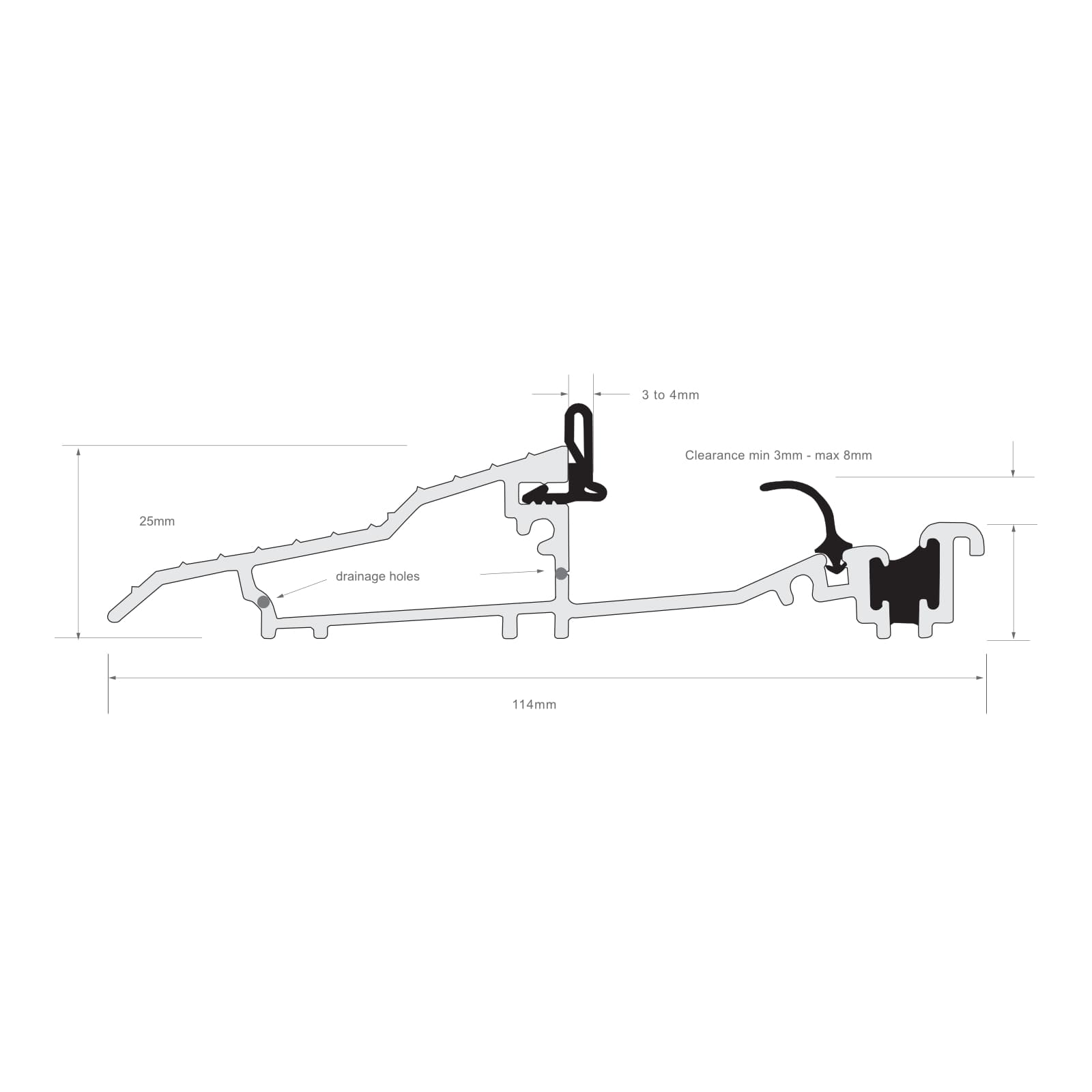

• DDA compliant threshold
• A minimum of 4 stainless steel hinges (BS 1935.2002 Grade 13)
• High quality powder coat finish to standard RAL & BS colour

Hardware Options:
• Sash lock and lever handles
• Security multi point locking system and lever handles
• Trimec electric strike and mortice night latch

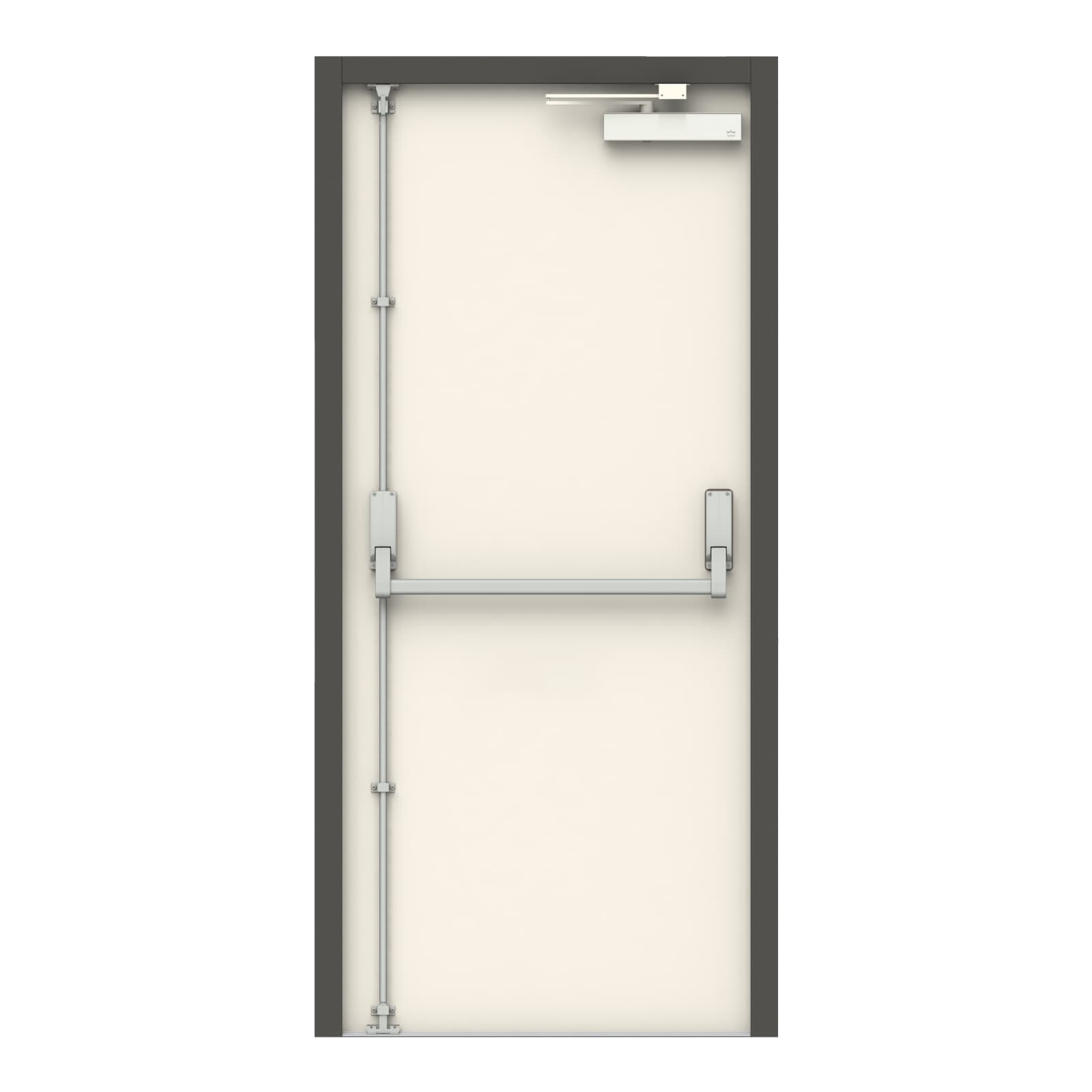

• Briton Panic Bars (choice of)
• Flush bolts in passive leaf (double doors)

Optional Extras:

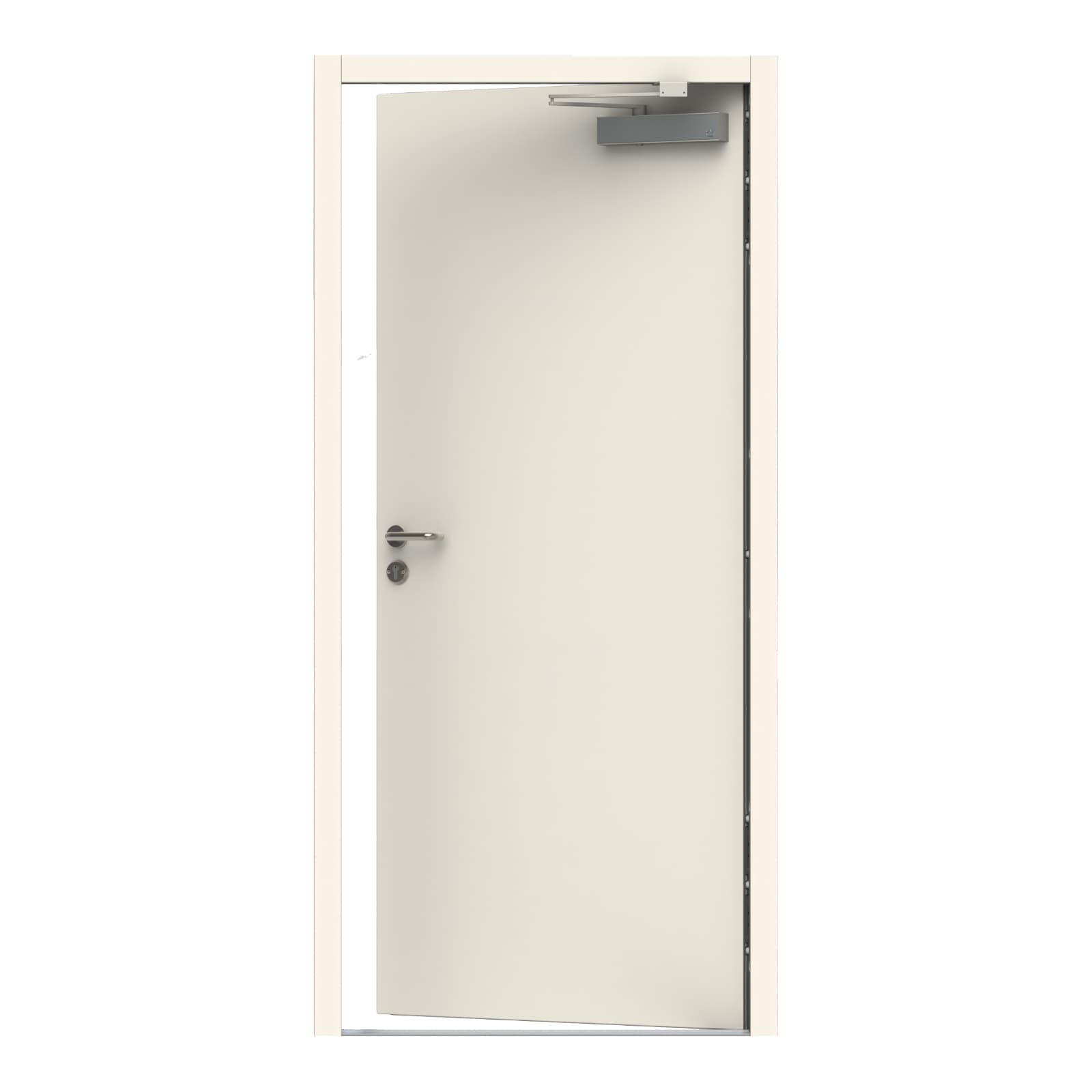

• Door closers and door stays
• Kick plates and push plates
• None stock RAL & BS colours available on request

Doors are complete with frame.

For advice or guidance please get in touch and a member of our team will be more than happy to help.
